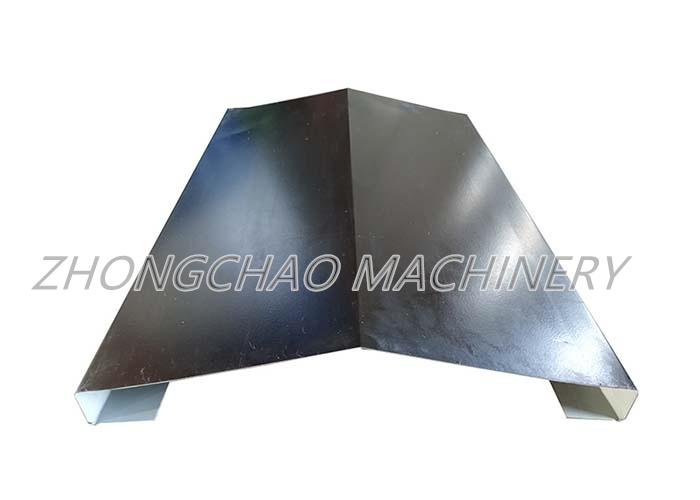

roof tile ridge cap steel plate roll forming machine
Product introduction:
Our company engaged in manufacturing the roll forming set of roofing panel and wall panel used for steel construction for many years. This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on.
It is produced continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.
Product introduction:
Our company engaged in manufacturing the roll forming set of roofing panel and wall panel used for steel construction for many years. This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on.
It is produced continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.
Technical Parameters (depending on specific requirements of users)
Suitable steel plate
Components
Workflow
Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table

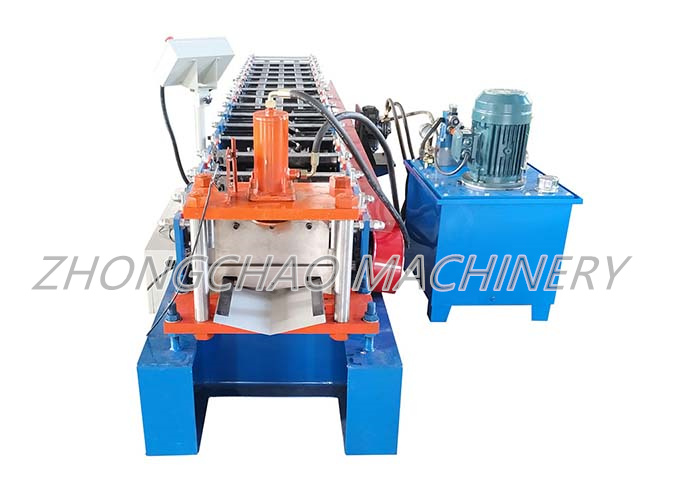

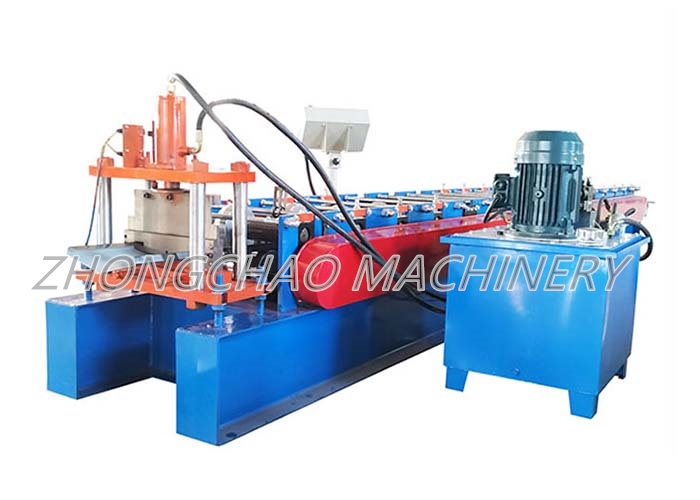

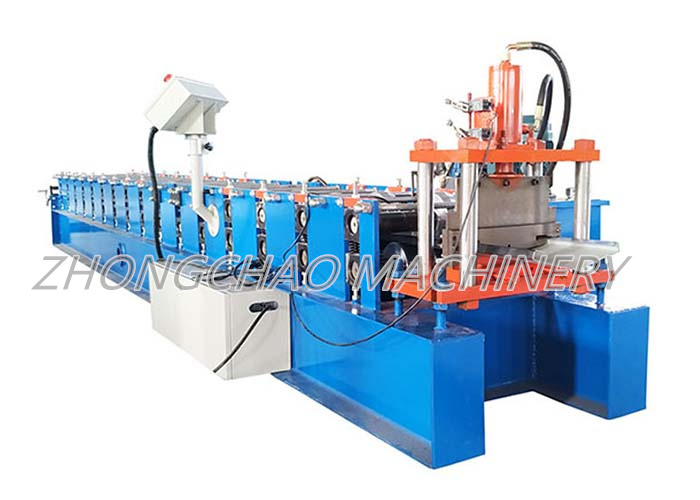

Machine pictures
Type
Color steel plate
Thickness
0.3-0.8mm
Feeding width
400mm
Production speed
8-12m/min
Roller stand
16 rows
Roller Diameter
60mm
size
7.7*1.2*1.5m
Main power
4kw
Pump power
3kw
Side panel of machine
14mm
Roller material
Carbon 45# steel
Blade material
Cr12, quenched, Cr-plating size 0.05mm
Control system
Delta PLC Control
Main structure of the machine
300mm H-Beam
No.
Item
Unit
Qty
1
Manual decoiler
set
1
2
Main roll forming machine
set
1
3
Main machine of composting
set
1
4
PLC control box
set
1
5
Supporter table
set
1
