Trapezoidal Type Galvanized Ppgi Roofing Roll Forming Machine

1.Trapezoidal Type Galvanized Ppgi Roofing Roll Forming Machine
This roofing sheet roll forming machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings roof, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.7mm. We adopt 16mm thick wall board type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.



2. Flat rib roofing panel roofing sheet roll forming machine with hydraulic curving function parameters



Raw material
material colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.3-0.8 mm
material expand width 914mm/1000mm/1200mm/1220mm/1250mm
Efficiency width 695mm/750mm/1000mm/1050mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 300 H steel
forming steps 15 stations
productivity 25m/min
hydraulic station power 4 KW
hydraulic pressure 10-12MPa
appearance size 6700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating
Service life 10 years



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles



Botou Zhongchao International trading Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


4. FAQ (about our roll forming machine)

  1. Do you have after sales support?
    Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
  2. What can you do if the machine broken?
    Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
  3. Can you be responsible for transport?
    Yes, please tell us the destination port or address. we have rich experience in transport.
  4. Do you provide customized?
    Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.

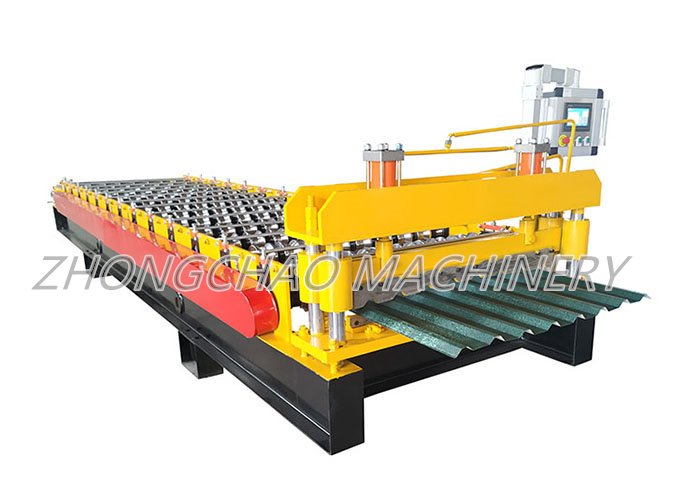

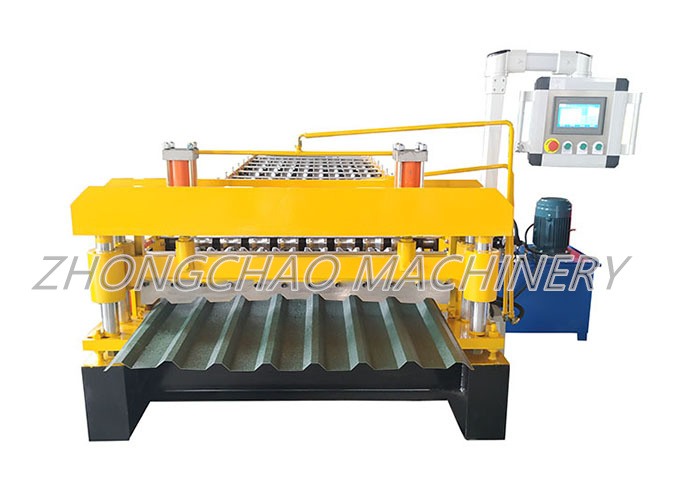

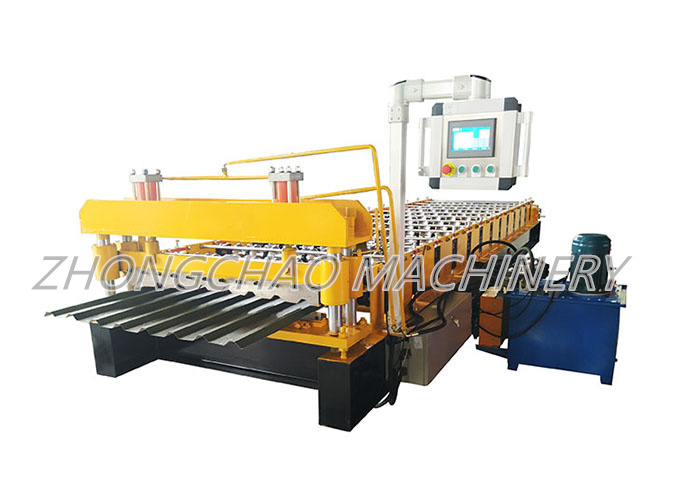

5. Roll forming machine pictures:

Trapezoidal-Type-Galvanized-Ppgi-Roofing-Roll-Forming-Machine-2.jpgTrapezoidal-Type-Galvanized-Ppgi-Roofing-Roll-Forming-Machine-3.jpgTrapezoidal-Type-Galvanized-Ppgi-Roofing-Roll-Forming-Machine-4.jpg
