automatic trapezoidal PPGL wall and roof metal roofing cold roll forming machine

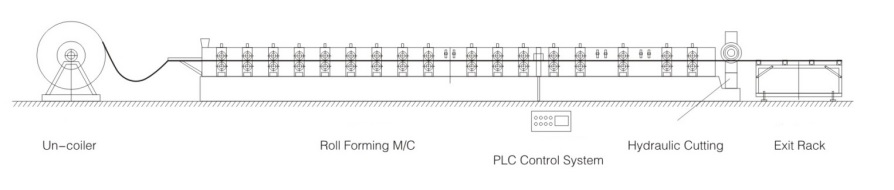

1.Equipment For Process Flow

Consist of Decoiler, Main roll forming machine, Cutting device, Hydraulic drive system, Electric control cabinet, ect.

Manuel decoiler-----------------------------1set

full roll forming machine-------------------1set

hydraulic cutting-----------------------------1set

plc control box--------------------------------1set

ischarge table --------------------------------1set

2. The roll forming machine details:

coil width	1200mm
efficiency width	1050mm
Material Thickness	0.3—0.7mm
Production speed	20-25m/min
Roller Stations	22stations
Roller material	45# steel, coated with chrome
Maim Motor Power	7.5kw
Hydraulic cutting Power	4kw
Material Of Cutting	CR12 with quench treatment
Hardness	HRC58-62
Tolerance	+/-2mm
Electric Source	380V, 50HZ,3 phases Also can satisfy customer’s require
Control System	PLC with touch screen
Way Of Drive	1.2 inches single chain
size	10.9*1.5*1.51m
frame material	Q235

FAQ

1. You are Trade Company or factory?

We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.

2. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.

3. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

COMPANY INTRODUCTION:

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

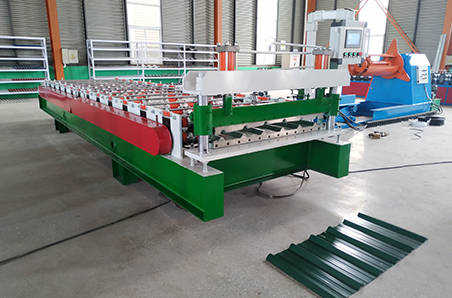

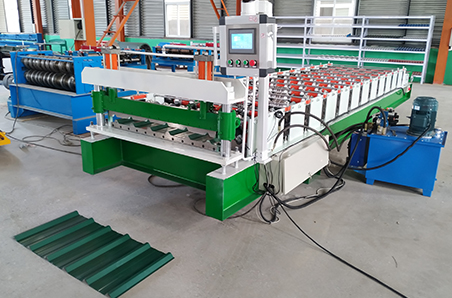

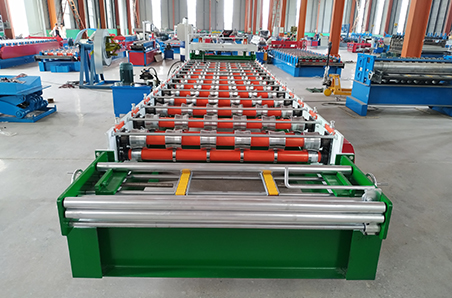

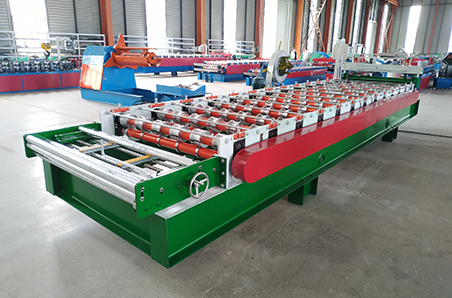

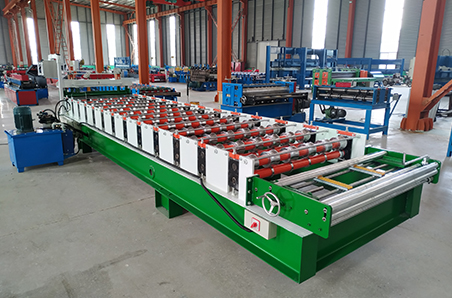

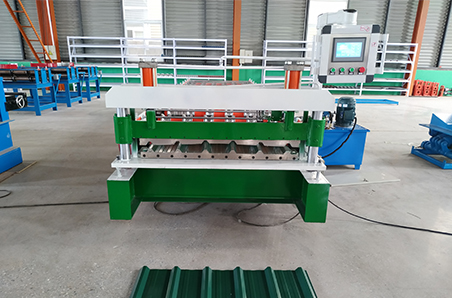

MACHINE PICTURES
