Steel roof valley ridge cap roll forming machine

Parameters:



Suitable material	Color steel sheet , galvanized steel sheet,
Main motor power	5.5KW with Cycloidal reducer
Hydraulic station power	7.5KW
Hydraulic oil	40#
Thickness	0.3-0.8mm
Diameter	Φ70mm
Material expand width	400mm
Electric tension	380V 3phase 50HZ
Material of roller	High grade 45# forged steel
Rolling galvanization thickness	0.05mm
Processing speed	10-15m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 quenched



Component of ridge cap making machine

COMPONENT FOR china made roof profile tile machine
Name		Quantity	Units
Decoiler		1	Set
Main Machine	Feeding device	1	Set
	Roll forming system	1	Set
	Cut Equipment	1	Set
	Hydraulic system	1	Set
Electric control system		1	Set
Supporter		1	Set



It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

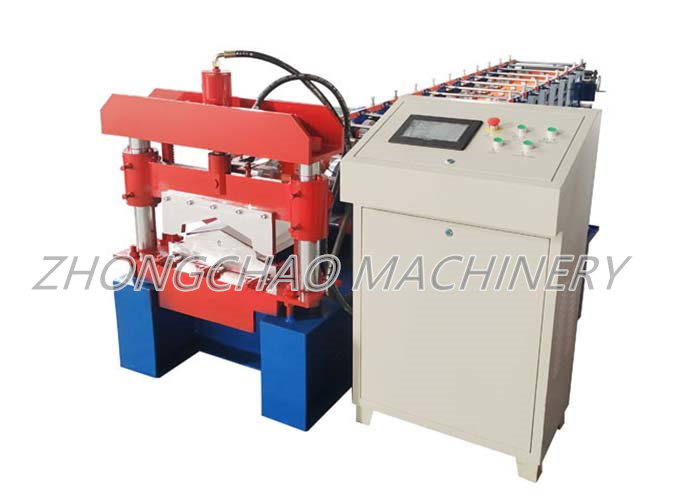

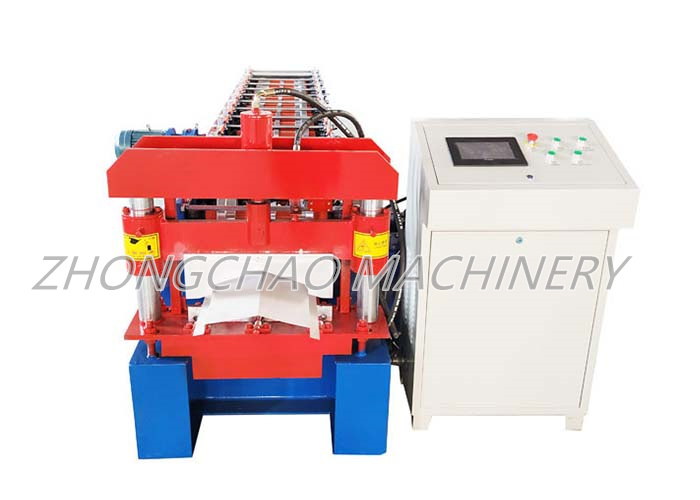

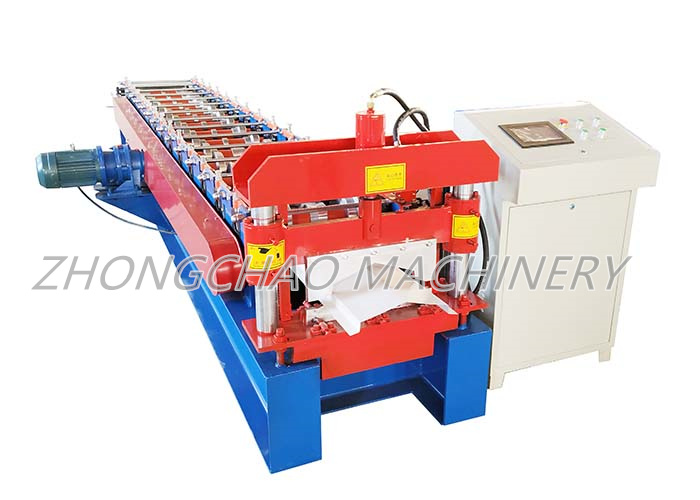

Machine picutres:
