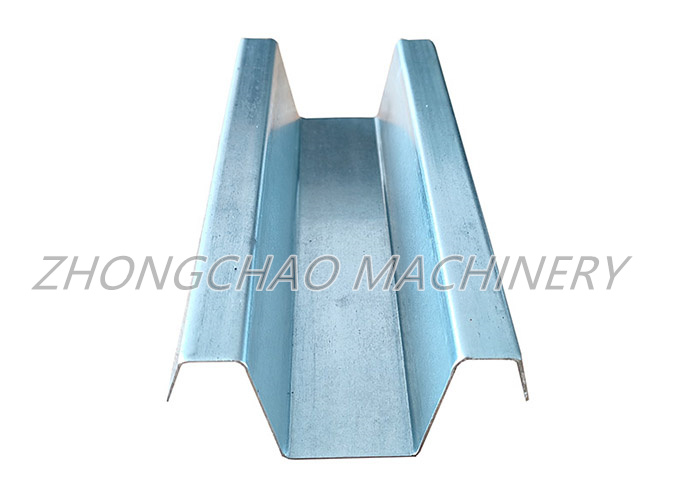

Omega Channel Ceiling Channel Light Keel Roll Forming Machine
1. Omega Channel Ceiling Channel Light Keel Roll Forming Machine
---- We are a factory with nearly 20 years experiences on Roll Forming Machines;
---- We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
2. Omega Channel Ceiling Channel Light Keel Roll Forming Machine parameters
3. roll forming machine company profiles
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 1 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 1 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
1. How to play order :
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK
2. What should I provide if I want to customized machine?
U need provide profile drawing, material, thickness, voltage and your special requirements.
3. What is the Warranty?
Within 12 mounts, all technicals are ready to serve you at any time.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Do you accpect L/C payment terms?
Yes,we accpect 100% L/C at sight from almost all countries.
6. What's your payment terms and delivery time?
30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.
---- We have our own research and development team with strong ability to solve all kinds of problems;
---- We have more than 20 technicians that can go abroad for the after-sale service;
Material
Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet
0.5-1 mm
Efficiency width
25/30mm
Machine details
Roller material
High grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft material
High grade NO. 45 carbon wrought steel
Cutting blade
Cr12 mould steel with quenched treatment
Diameter of shaft
70mm or as your requirement
Main frame
300 H steel
Forming steps
16 stations
Productivity
30-35m/min
Hydraulic station power
5.5 KW
Hydraulic pressure
10-12MPa
Appearance size
7700mm*1500mm*1500mm
Hydraulic oil
40# hydraulic oil
Electric tension
380V 50 Hz 3 Phase or as your requirement
Cut Mode
Hydraulic forming after cutting off
Cutter materia
Cr12 Heat Treatment
Electronic control system
PLC, Touch Screen, Encoding counter
Color
Blue, green or yellow or as your requirement
Rolling material
45# steel,roller surfaces polishing, hard plating
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Busniess terms
5. FAQ

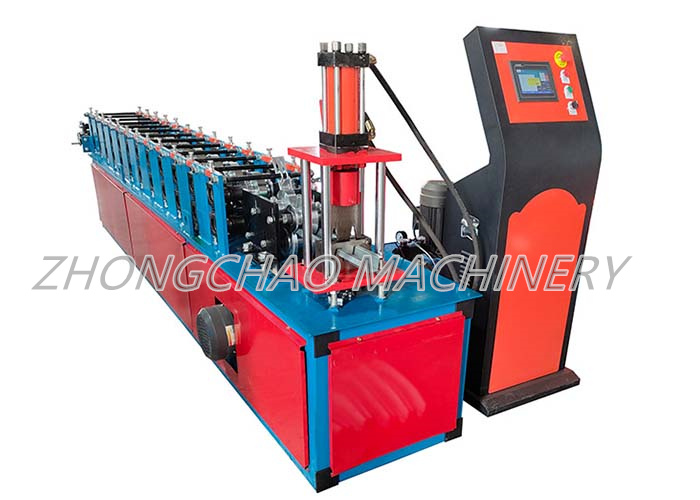

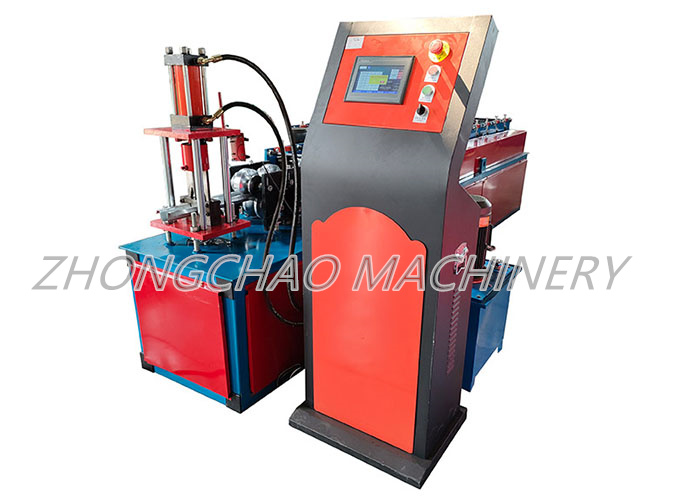

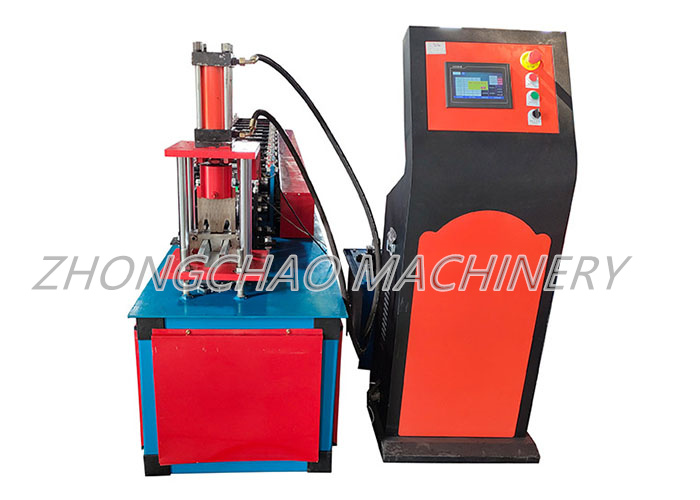

6. Roll forming machine pictures:
