Metal Light Gauge Stud Track Light Keel Roll Forming Machine For Drywall
Metal Light Gauge Stud Track Light Keel Roll Forming Machine For Drywall
  • Description
  • Contact us

1. Metal Light Gauge Stud Track Light Keel Roll Forming Machine For Drywall

--- Serval group continuous forming rollers let the galvainized steel easy forming.

--- During forming, a hydraulic punch mold can puch holes on the frame.

--- A PLC control program can control the forming and punching coordinately.

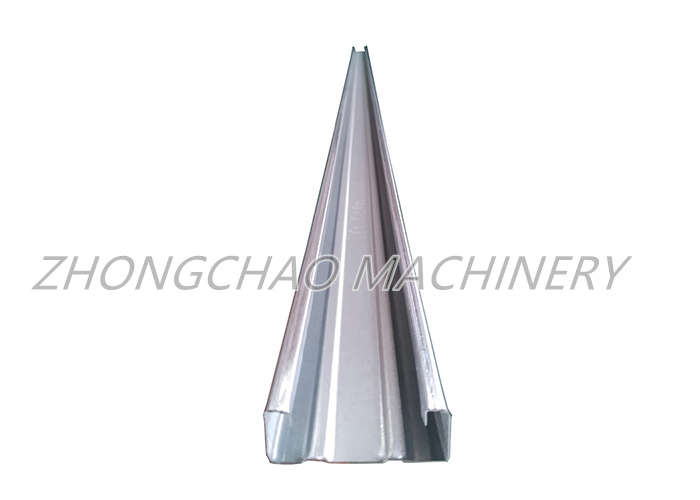

--- The finally products use for steel construction frames.

2. Metal Light Gauge Stud Track Light Keel Roll Forming Machine For Drywall parameters

Suitable Material Material Steel, galvanized steel
Thickness 0.28-0.4 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of blade Cr12 Heat Treatment
Speed 10-15 m/min
Side plate thickness 16 mm
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 5000mm*800mm*1500mm
Weight(About) 1.5 tons
Electronic control system PLC + Touch Screen



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Comapny advantage:

In Botou, we start the pressure roll forming machine export business from 2008.

As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

Provide best price,good quality and fast delivery.


5. FAQ

1.Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.

6.Our company provides design layout drawings, designers with professional qualifications, according to your layout parameters, for you to exclusively design machine solutions, we can also design the machine according to the factory area you provide Land area, and labor demand.

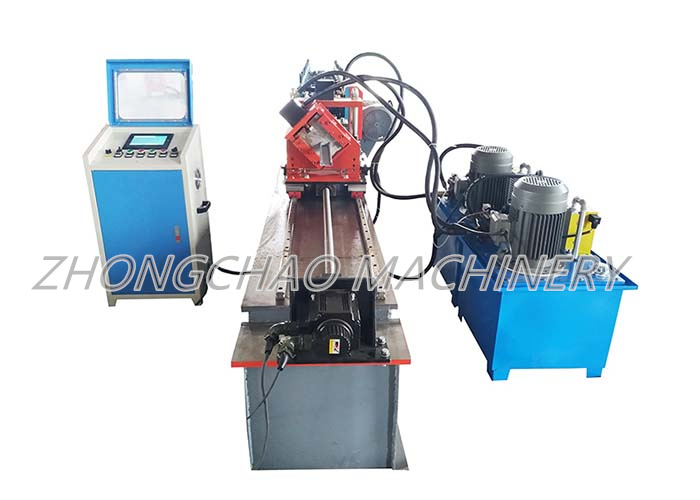

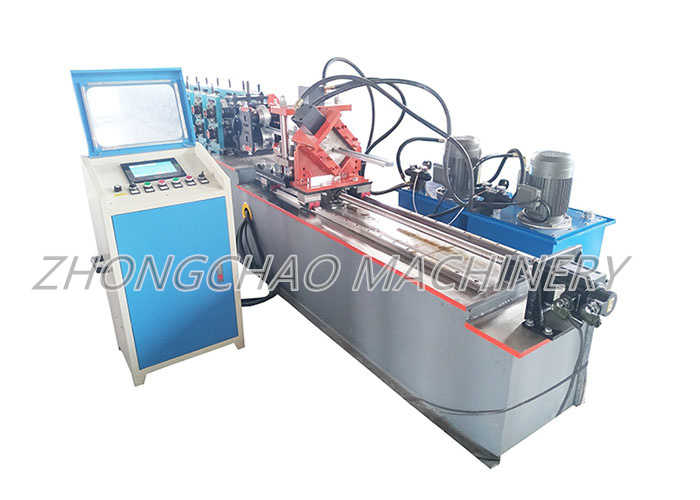

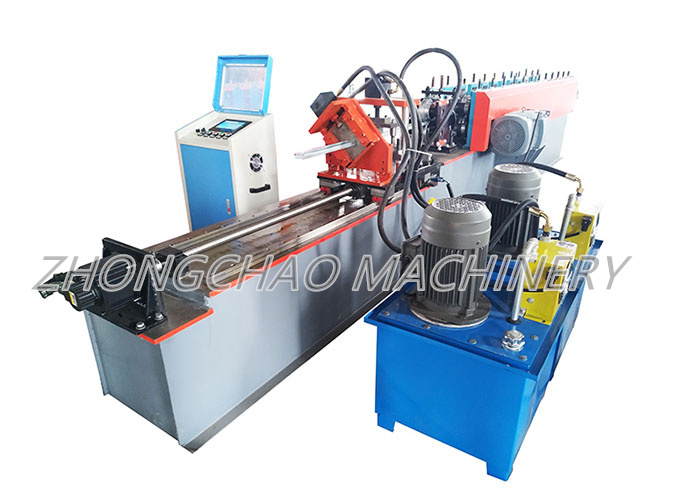

Metal-Light-Gauge-Stud-Track-Light-Keel-Roll-Forming-Machine-For-Drywall-2.jpgMetal-Light-Gauge-Stud-Track-Light-Keel-Roll-Forming-Machine-For-Drywall-3.jpgMetal-Light-Gauge-Stud-Track-Light-Keel-Roll-Forming-Machine-For-Drywall-4.jpgMetal-Light-Gauge-Stud-Track-Light-Keel-Roll-Forming-Machine-For-Drywall-5.jpg
