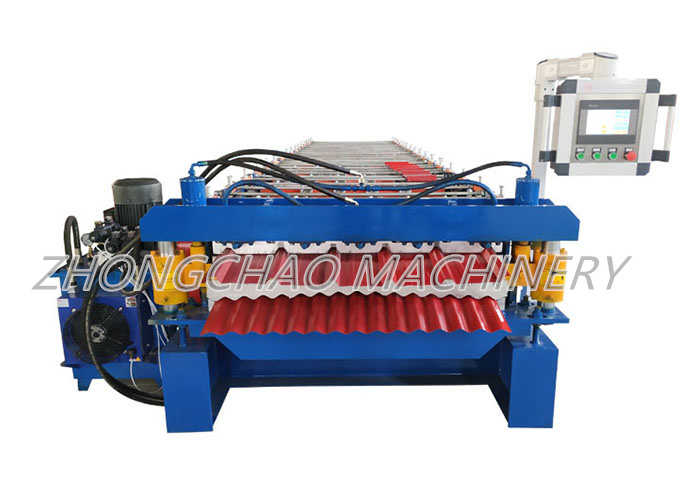

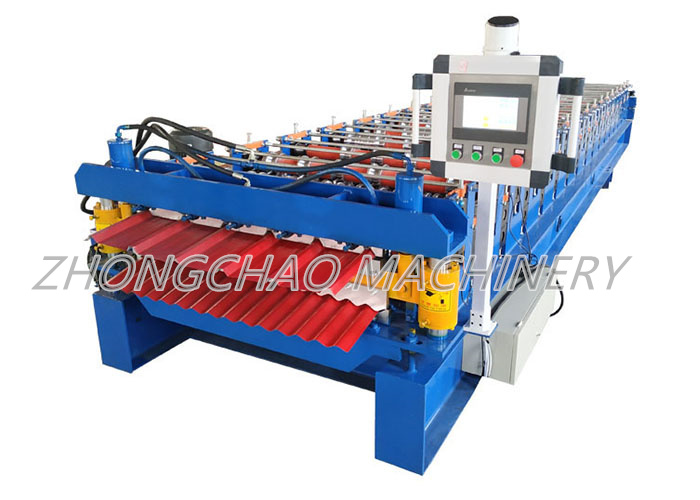

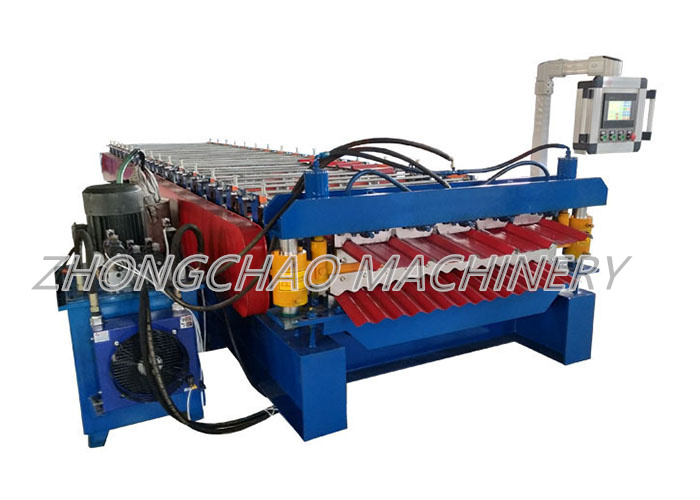

Metal Aluminum Trapezoidal Sheet Double Layer Forming Machine
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
2. Delivery time: Within 35 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3)Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
We are Gold supplier with BV assessment and CE certificate.
4)Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period ,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address we have rich experience in transport.
Double Layer Roll Forming Machine Metal Roofing Corrugated Steel Sheet Wall Panel tile making machine
Suitable material
Color steel sheet , galvanized steel sheet,aluminum sheet
Installation Dimension (L*W*H)
7350X1200X1500mm
Main motor power
4KW with Cycloidal reducer
Hydraulic station power
4KW
Hydraulic oil pump
CB-E 310
Material expand width
1000-1250mm
Thickness of material
0.3mm~1.2mm
Diameter of shaft
Φ70-90mm
forming step
15/16 steps
Material of roller
High grade 45# forged steel plated with hard chrome plating
Controlling system
PLC
Processing speed
8-10m/min(glazed tile is 2-3m/min)
Processing precision within
1.00mm (depend on design)
Material of cutting blade
Cr12 mould steel with quenched treatment
Kind of drive
0.6 inch chain link bearing model 6210
Roller material
high grade 45#steel; Cr12 quenching
Main frame
300 H beams
Machine weight
6.5Tons
