Light Steel Keel Roll Forming Machine Gauge Steel Stud And Track Roll Forming Machine
1. Light Steel Keel Roll Forming Machine Gauge Steel Stud And Track Roll Forming Machine
This machine design two rows rollers in one machine, only take half space of two machines, but can produce two different profile, machine cost also lower than two machines, save customer's working space and budget.
Cr 12 rollers after quench, enough hardenss to keep rollers have a long working life.
2.Light Steel Keel Roll Forming Machine Gauge Steel Stud And Track Roll Forming Machine parameters
3. roll forming machine company profiles
- metal studs track roll forming machine/drywall steel material light keel machine consist of one set decoiler, one sets of feeding platforms and one roll forming core,and one cutting dies.

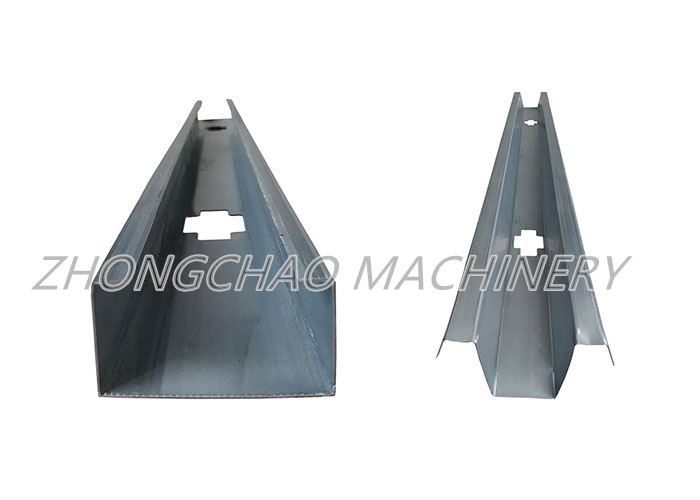

- metal studs track roll forming machine/drywall steel material light keel machine size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request
- When we finish metal studs track roll forming machine/drywall steel material light keel machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status and when customer receive the machine, the machine can be used very easy
Pre-sale Service
1. Send you invitation letter, If you wanna visit our factory and check the machines.
2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.
Selling Service
1. Short delivery time after deposit 30-40 days.
2. Email you the production schedule and make prompt delivery for you.
3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.
4. Always be here for your service 12 hours per day.
After-sale Service
1. We welcome all feedback about our products and prices and services from our customers.
2. Any questions, please contact with us freely by E-mail or Telephone.
parameters
Production Capacity
15-20 m/min
Power(W)
4+4KW
Voltage
380V 50Hz 3phases
Dimension(L*W*H)
6500*800*1500mm
Weight
3.5 T
Suitable material
Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material
120-180 mm
Rows of rollers
12 rows
Material of roller
High grade 45# steel(plated chrome on surface)
Thickness of raw material
0.7-1.2 mm
Certification
ISO
Tile Type
Tile Cutting Machine
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Comapny advantage:
5. Service

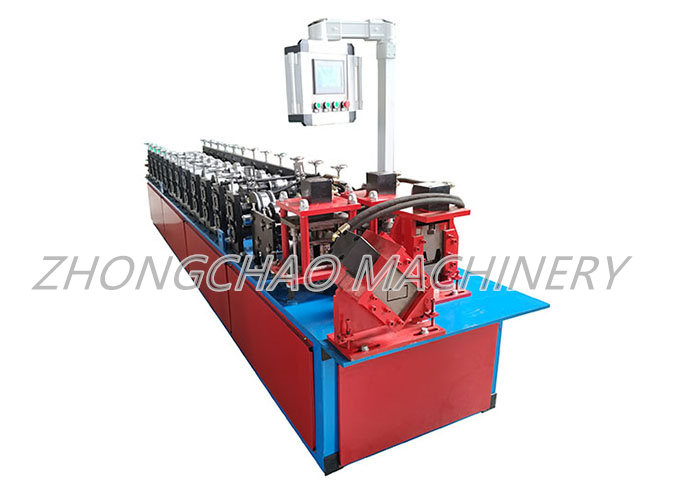

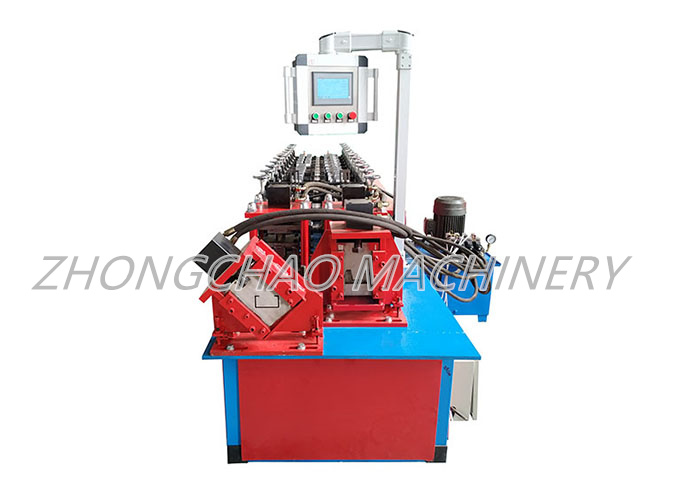

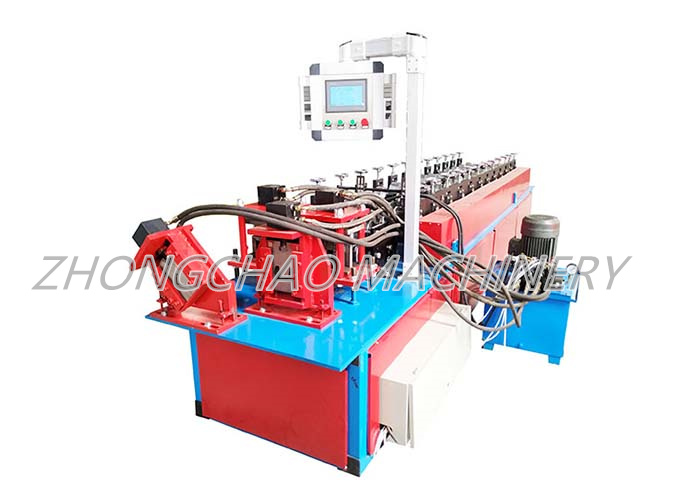

6. Roll forming machine pictures:
