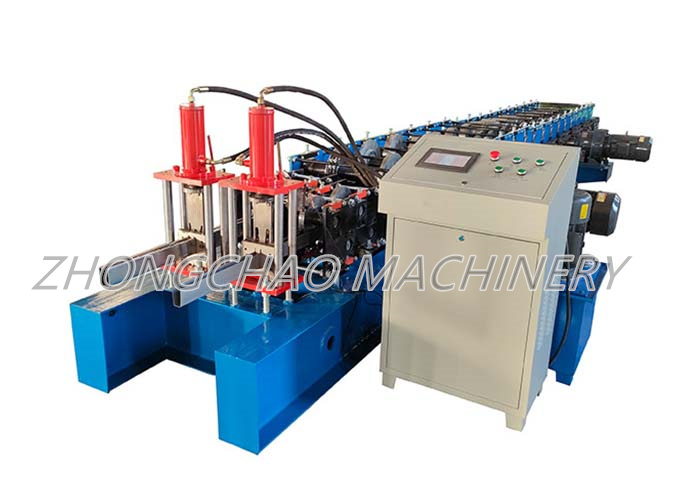

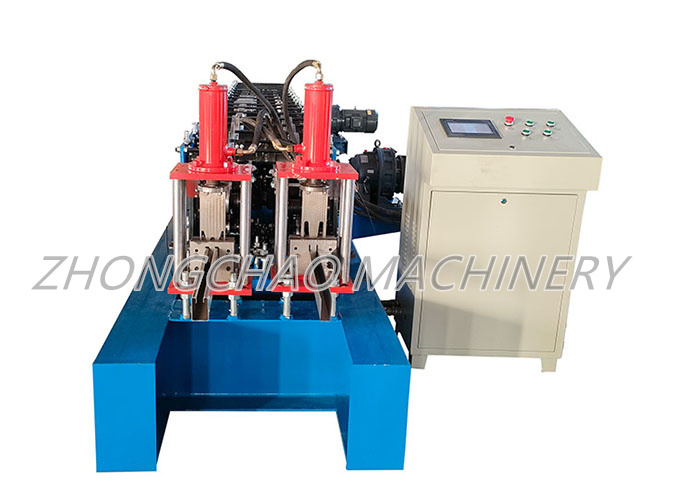

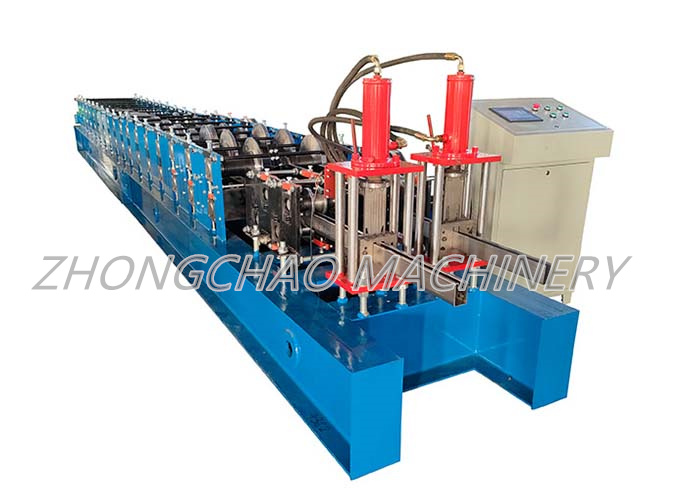

Light Gauge Steel Roof Truss And Track C Channel Forming Machine Automatic High Speed
1. Light Gauge Steel Roof Truss And Track C Channel Forming Machine Automatic High Speed
2. Light Gauge Steel Roof Truss And Track C Channel Forming Machine Automatic High Speed parameters
3. roll forming machine company profiles
- metal studs track roll forming machine/drywall steel material light keel machine consist of one set decoiler, one sets of feeding platforms and one roll forming core,and one cutting dies.
- metal studs track roll forming machine/drywall steel material light keel machine size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request
- When we finish metal studs track roll forming machine/drywall steel material light keel machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status and when customer receive the machine, the machine can be used very easy
1. We are a factory with nearly 20 years experiences on Roll Forming Machines;
2. We have our own research and development team with strong ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the after-sale service;
5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us;
6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;
7. Our machines have reached the International Inspection Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a day.
parameters
Production Capacity
15-20 m/min
Power(W)
4+4KW
Voltage
380V 50Hz 3phases
Dimension(L*W*H)
6500*800*1500mm
Weight
3.5 T
Suitable material
Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material
120-180 mm
Rows of rollers
12 rows
Material of roller
High grade 45# steel(plated chrome on surface)
Thickness of raw material
0.7-1.2 mm
Certification
ISO
Tile Type
Tile Cutting Machine
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Comapny advantage:
5. Service
Tel:+86-15930785588
Whatsapp:+86-15930785588
Fax:+86-15930785588
Email:robin@chinasupercompany.com
Address:West Side Of No. 1 Road, Economic Development Zone, Botou, Hebei, China (Mainland)
Please feel free to give your inquiry in the form below.We will reply you within 24 hours
