House Inside Ceiling Panel Machine With Hidden Locker And Ventilate Hole
House Inside Ceiling Panel Machine With Hidden Locker And Ventilate Hole
  • Description
  • Contact us

House Inside Ceiling Panel Machine With Hidden Locker And Ventilate Hole

1. House Inside Ceiling Panel Machine With Hidden Locker And Ventilate Hole
---- Easy to learn how to operate the machine, we provide instructor teach customer.

---- Machine used for house inside ceiling making.

---- Hydrualic cutter, 40-40# hydraulic oil.

---- High effeciency working, one minute can produce 12 meters.


2. House Inside Ceiling Panel Machine With Hidden Locker And Ventilate Hole Parameters

Material Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet 0.5-1 mm
Efficiency width 25/30mm
Machine details
Roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft material High grade NO. 45 carbon wrought steel
Cutting blade Cr12 mould steel with quenched treatment
Diameter of shaft 70mm or as your requirement
Main frame 300 H steel
Forming steps 16 stations
Productivity 30-35m/min
Hydraulic station power 5.5 KW
Hydraulic pressure 10-12MPa
Appearance size 7700mm*1500mm*1500mm
Hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating


Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Our advantage

1. We are a factory with nearly 20 years experiences on Roll Forming Machines;
2. We have our own research and development team with strong ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the after-sale service;
5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us;
6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;
7. Our machines have reached the International Inspection Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a day.

5. FAQ

1.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2.How to visit our company :

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3.When we exported the machines :

We have beening making and exporting the machines since from the year of 1998.

4.*Guarantee* :

Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.

5.*After-sales* :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,

The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.

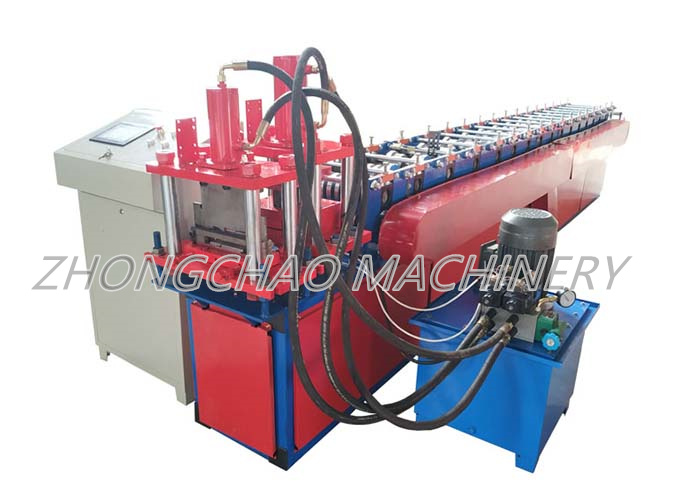

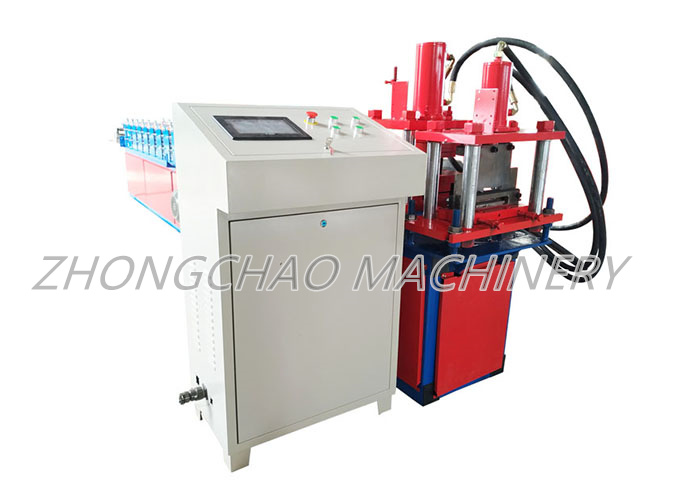

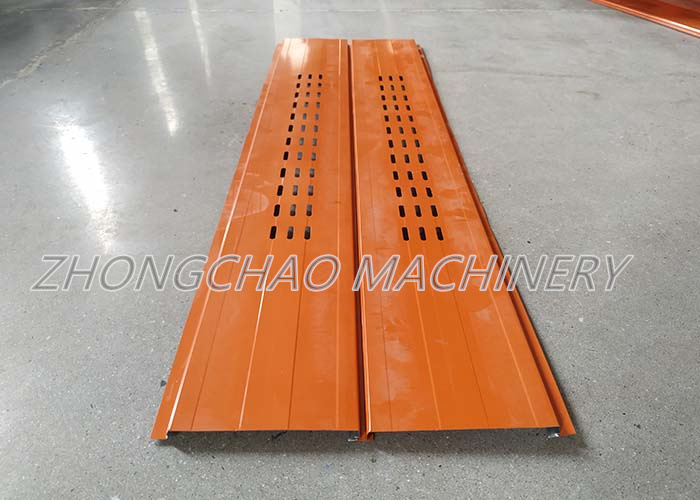

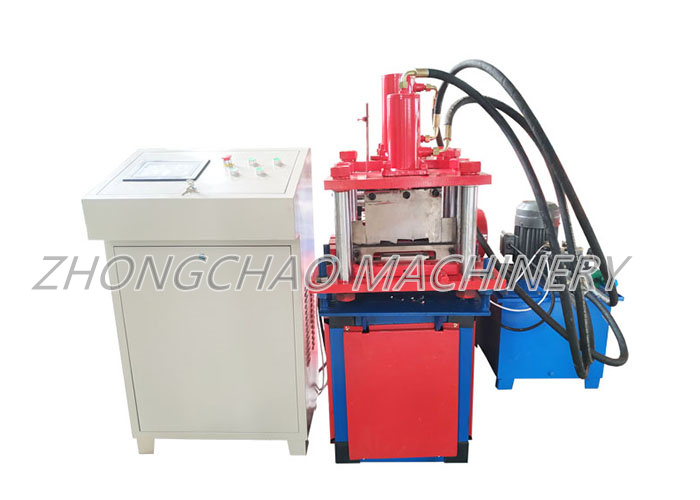

6. Roll forming machine pictures:

House-Inside-Ceiling-Panel-Machine-With-Hidden-Locker-And-Ventilate-Hole-2.jpgHouse-Inside-Ceiling-Panel-Machine-With-Hidden-Locker-And-Ventilate-Hole-3.jpgHouse-Inside-Ceiling-Panel-Machine-With-Hidden-Locker-And-Ventilate-Hole-4.jpgHouse-Inside-Ceiling-Panel-Machine-With-Hidden-Locker-And-Ventilate-Hole-5.jpg
