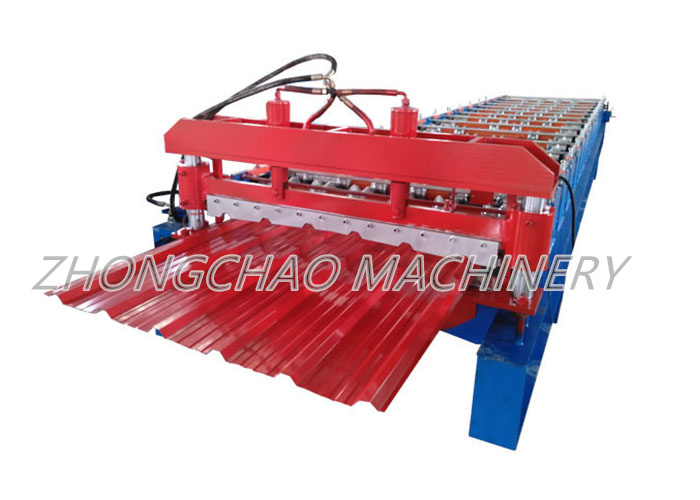

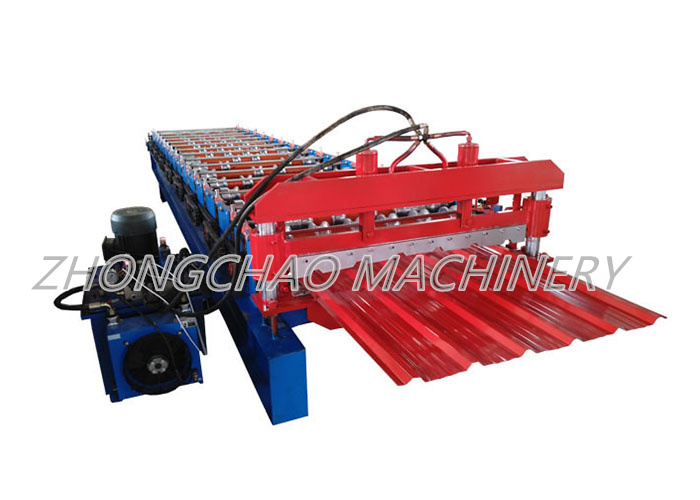

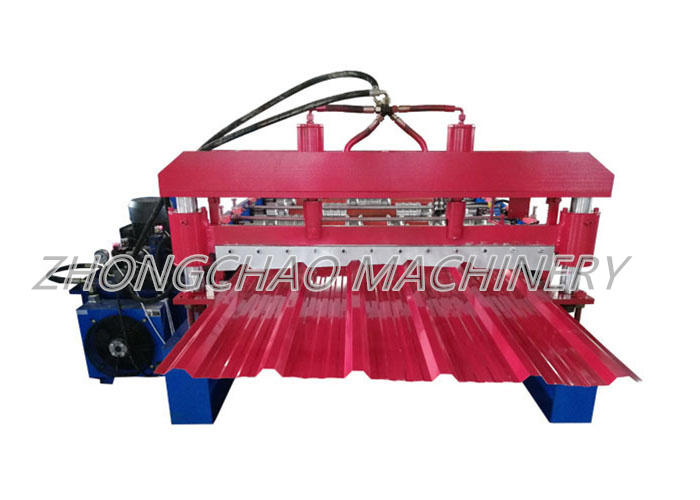

Hot Sell Multiple Profile Iron Color Roof Sheet Metal Roll Forming Machines

Parameter of color steel tile forming machine :

1	Model No.	High Speed Floor Deck Steel Roll Form Machine
2	Thickness	0.3-0.8mm
3	Coli material	GI
4	The bearing capacity of manual decoiler	6.5 tons
5	shaft material	45#steel
6	Out diameter	Customized
7	numbers of forming steps	Customized
8	transmission	chain transmission
9	Forming speed	8-12m/min
10	main motor power	3kw
11	voltage	380V50HZ Three-phase or as required
12	dimension	7*1.3*1.3
13	cutting	hydraulic cutting
14	blade material	Cr12 steel with quenched treated 60-62°c
15	control system	PLC(Delta)
16	length tolerance	±1mm
17	spare parts	1 easy demaged parts:conk 2pcs, fuse-link 4pcs 2 rubber mat: 1 pcs 3 bolt spanner: 1 pcs
18	The whole line including: Manual decoiler, roll forming machine, hydraulic station, hydraulic cutter, PLC control system, run-out table.



Fully automatic 840  press parameters:

Shape size: 5500 mm * 1300 mm * 1200 mm

Whole machine weight; 2T

Shaft: 70 mm in diameter

Molding wheel: material 45#

Driving mode: sprocket, chain

Motor: 3KW

Forming row number: 11 rows; Automatic computer fixed length cut-off system:

Pumping station motor: 3KW

Cutting die: Gr12

Molding speed: 8-10m/min

Compression thickness: 0.2-0.8mm

Compression width: 1000mm

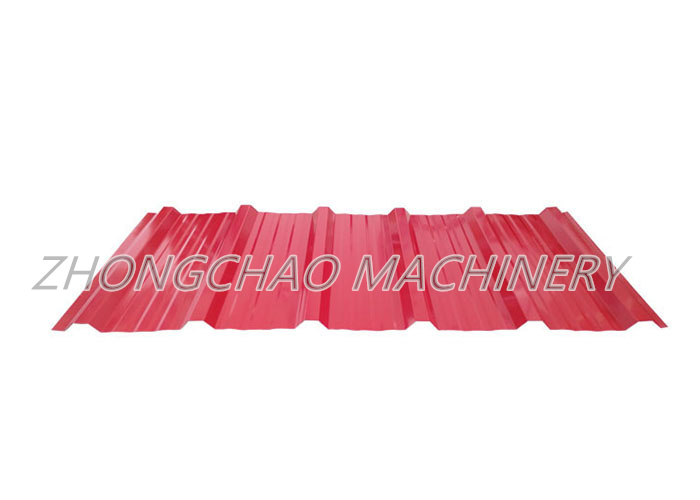

840 tile press can produce various appearance roof panels according to production needs, and the yield is high. Products are widely used in various industrial plants, houses, warehouses and simple steel roofs, beautiful and generous, durable.

It can be customized if you need to modify the format.
