Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Manual Decoiler
| Capacity | 3T |
| Inner Diameter | 450-550mm |
| Width | 300mm |
The roll forming machine
| Suitable Material | Material | Steel, galvanized steel |
| Thickness | 0.3-0.8 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 10 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 50mm | |
| Material of blade | Cr12 Heat Treatment | |
| Speed | 10-15 m/min | |
| Side plate thickness | 16 mm | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 4500mm*1000mm*1500mm | |
| Weight(About) | 1.5 tons | |
| Electronic control system | PLC + Touch Screen | |
| Components of the machine |
The components that each set machine includes: Hydraulic uncoiler--------------------------------------------------------------------1 set; Guide platform------------------------------------------------------------------------1 set; Pre-cutting device--------------------------------------------------------------------1 set; Roll forming station------------------------------------------------------------------1 set; Hydraulic cutting device------------------------------------------------------------1 set; Drive motor----------------------------------------------------------------------------1 set; Encoder--------------------------------------------------------------------------------1 set; Hydraulic pump station-------------------------------------------------------------1 set; PLC control system------------------------------------------------------------------1 set; Electronic components-------------------------------------------------------------1 set. |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Main Features

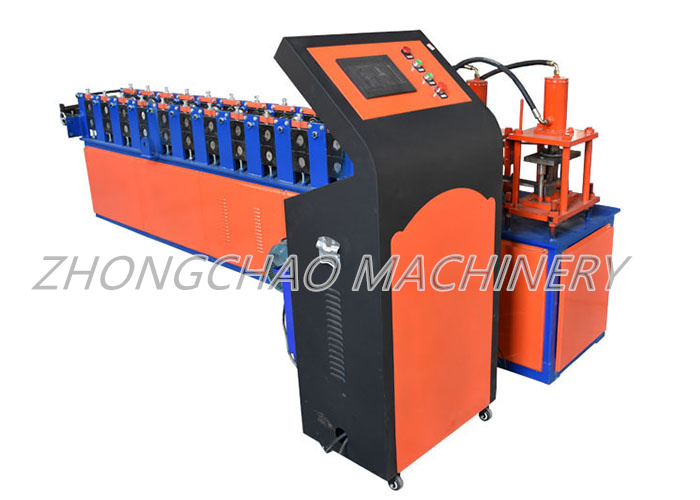

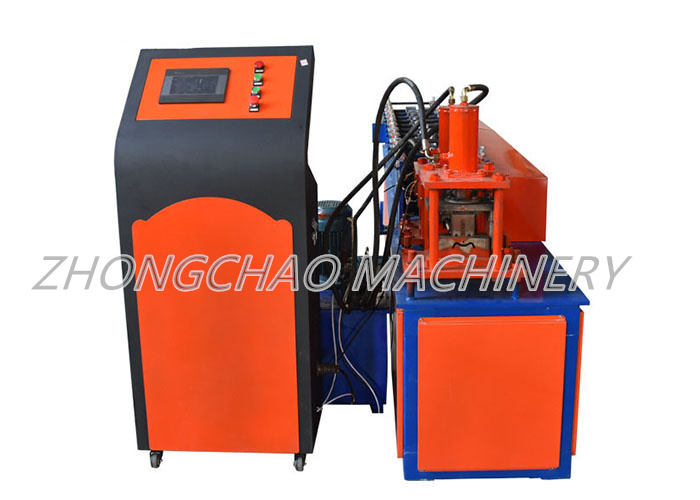

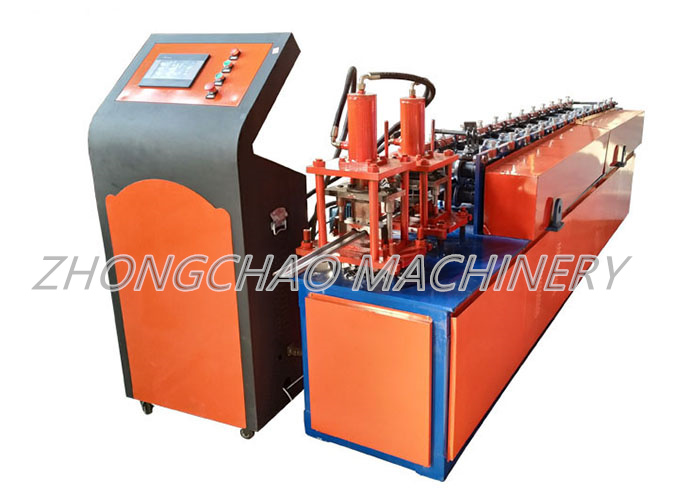

High QualitySteel Light Keel Roll Forming Machine

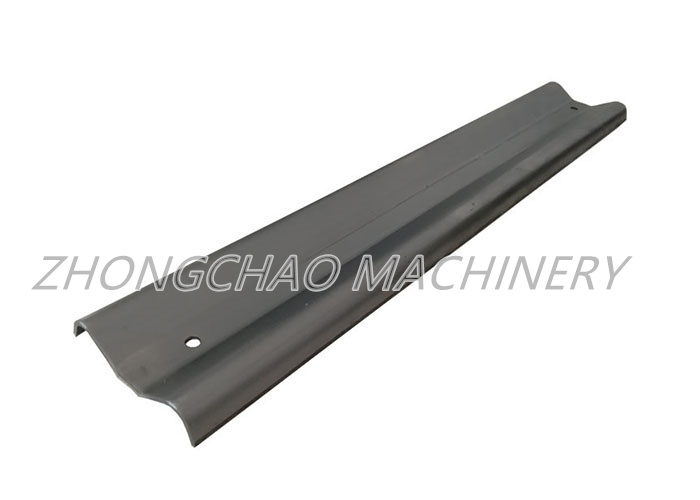

This steel light keel roll forming machine produces c shape light keels according to customer's requirements. Material strips undergoes the process of uncoiling, feeding, roll forming, cutting and collecting. Controlled by PLC control system, operating of the whole machine becomes easy. Workers only need to be trained how to collectly input related data through the touch screen. All the electic parts of this machine are from famous brands to ensure the perfect performance.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.




Tel:+86-15930785588
Whatsapp:+86-15930785588
Fax:+86-15930785588
Email:robin@chinasupercompany.com
Address:West Side Of No. 1 Road, Economic Development Zone, Botou, Hebei, China (Mainland)
Please feel free to give your inquiry in the form below.We will reply you within 24 hours
