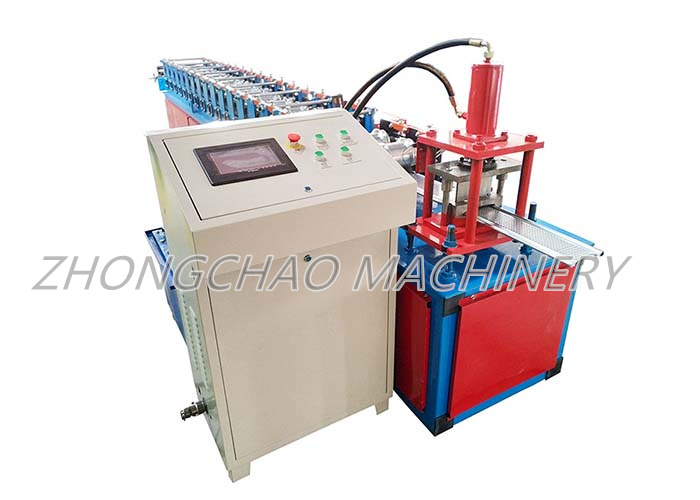

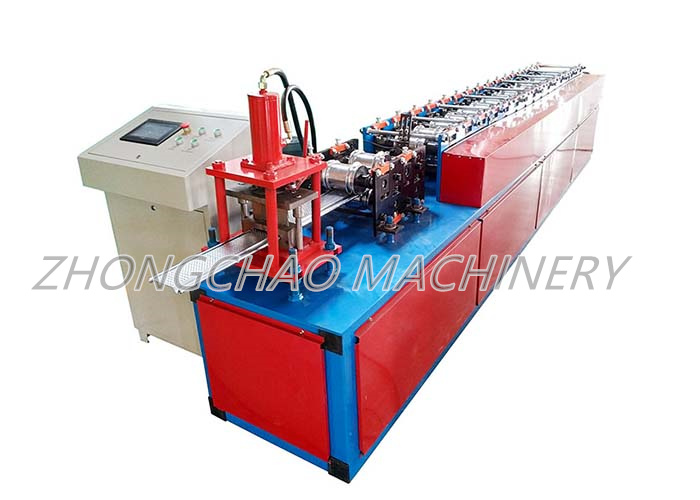

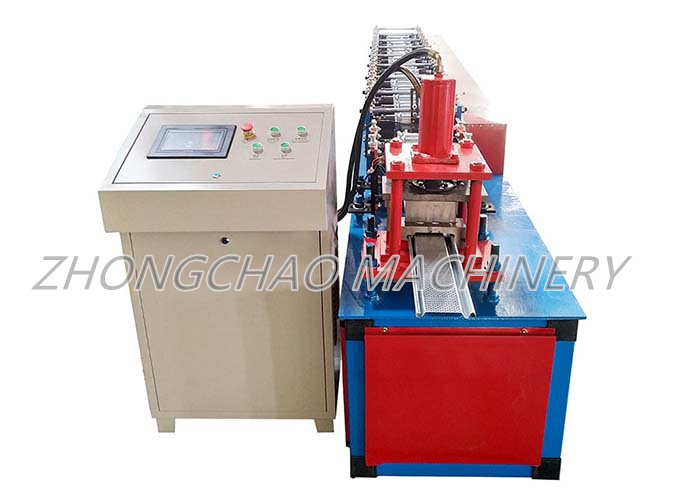

Good quality stamping flower shutter door garage sheet roll forming machine



Suitable Material	Material	Galvanized Sheet
	Width	152 mm
	Thickness	0.7-0.8 mm
Material of rollers		High grade 45# forged steel, surface hard chromium plating
Rows of rollers		12 stations
Material of shafts		High grade 45# forged steel
Diameter of shafts		50mm
Material of blade		Cr12 Heat Treatment
Speed		8-12 m/min
Total power		4 kw
Voltage		380V 50HZ 3Phase
Appearance size (About)		4600mm*800mm*1500mm
Electronic control system		PLC +Touch Screen



Standard Configuration:



3 tons Manual decoiler	1 set
Main roll forming machine	1 set
Hydraulic pump system	1 set
PLC control system	1 set
Receiving Table	1 set
Spare parts	1 set



Manual Decoiler



Capacity	3T
Inner Diameter	450-550mm
Width	300mm



Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 20 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
