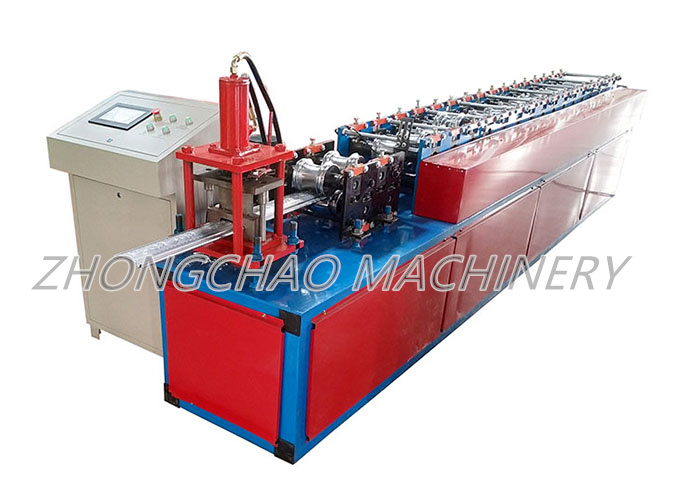

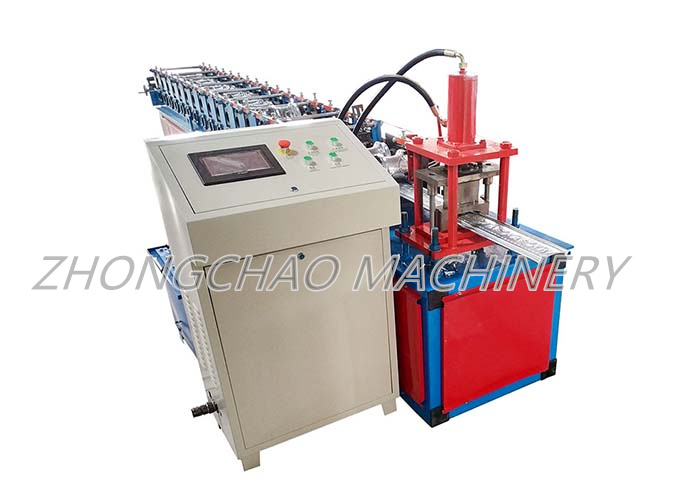

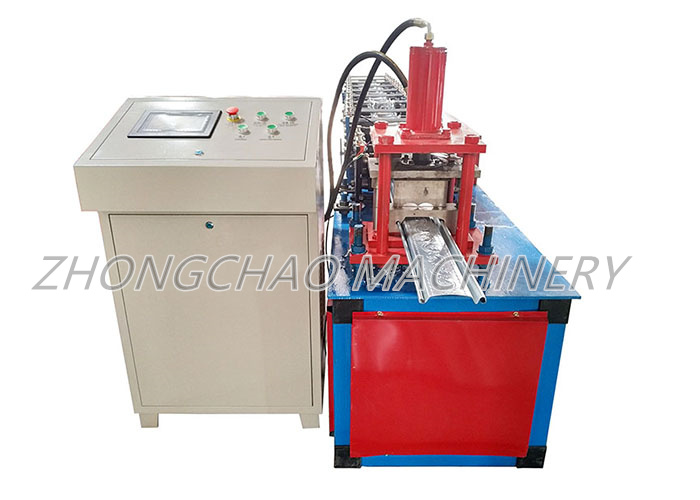

Garage roller up door slats shutter roll forming machine manufacturing line



Suitable Material	Material	Galvanized Sheet
	Width	161 mm
	Thickness	0.7-0.8 mm
Material of rollers		High grade 45# forged steel, surface hard chromium plating
Rows of rollers		12 stations
Material of shafts		High grade 45# forged steel
Diameter of shafts		50mm
Material of blade		Cr12 Heat Treatment
Speed		8-12 m/min
Total power		4 kw
Voltage		380V 50HZ 3Phase
Appearance size (About)		4600mm*800mm*1500mm
Electronic control system		PLC +Touch Screen



Production Process:



Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving



Standard Configuration:



3 tons Manual decoiler	1 set
Main roll forming machine	1 set
Hydraulic pump system	1 set
PLC control system	1 set
Receiving Table	1 set
Spare parts	1 set



Service and Terms



Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% ofthe total contract value to be paid by T/T after inspection by buyer in seller's factory while

before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the

cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary

100USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free
