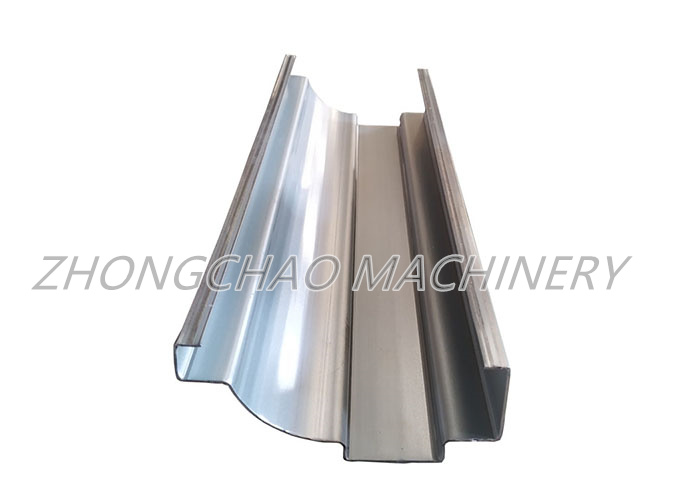

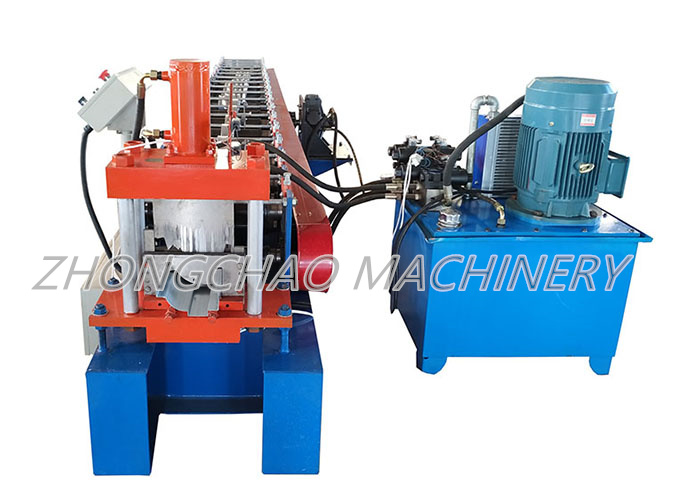

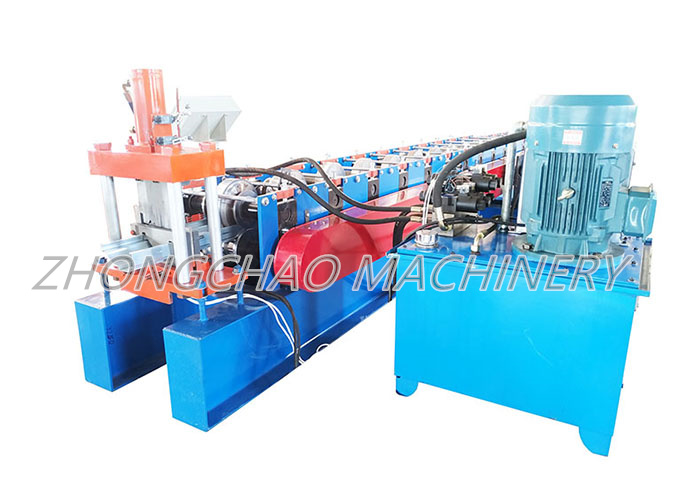

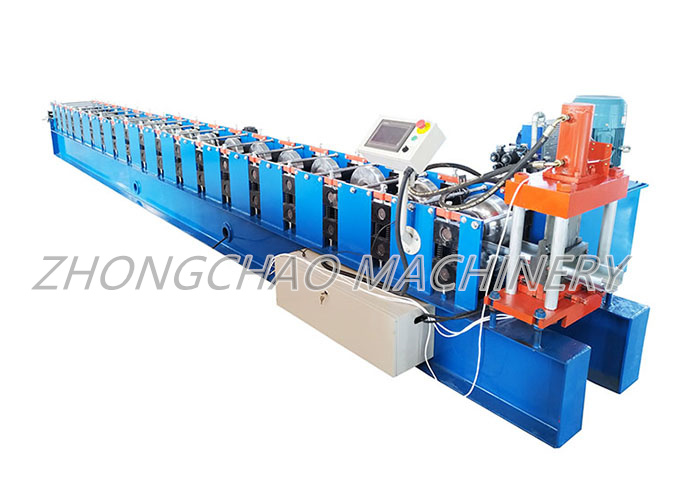

Galvanized steel door frame roll forming machine

Diameter Of Shaft: 70 Mm
Main Frame: 300 H Steel
Hydraulic Station Power: 4 KW
Material: Gi Ppgi Ppgl
Thickness: 1-2 Mm
Control System: PLC
Voltage: 380V 50HZ 3Phase

Parameters

Raw material
material spec	GI, EG, CR
thickness of coil sheet	1-2mm
Machine details
roller material	High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material	High grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment
forming steps	20 rows
productivity	15-20 m/min
hydraulic station power	7.5 KW
hydraulic pressure	10-12MPa
controlling system	famous PLC computer control
material of cutting table	Cr 12 mould steel with quenched treatment
appearance size	8m*1m*1.5m
weight	7 tons
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirements

Packing Method
Main machine is packaged with plastic film

Transportation
All machines need one 20 feet container to hold

Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time
Within 30 days after receiving deposit.

Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
