Galvanized Steel Ppgi Trapezoidal Roofing Sheet Metal Roll Forming Machines
1. Galvanized Steel Ppgi Trapezoidal Roofing Sheet Metal Roll Forming Machines
2. Galvanized Steel Ppgi Trapezoidal Roofing Sheet Metal Roll Forming Machines parameters
3. Shitong cold roll forming machine company profiles
4. Our service
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
5. FAQ (about our roll forming machine)
1. Does one machine can only produce one style panel profile?
2. Do you have after sales support?
3. How to visit your company?
4. What can you do if the machine broken?
5. You are Trade Company or factory?
6. Why your price is higher than others?

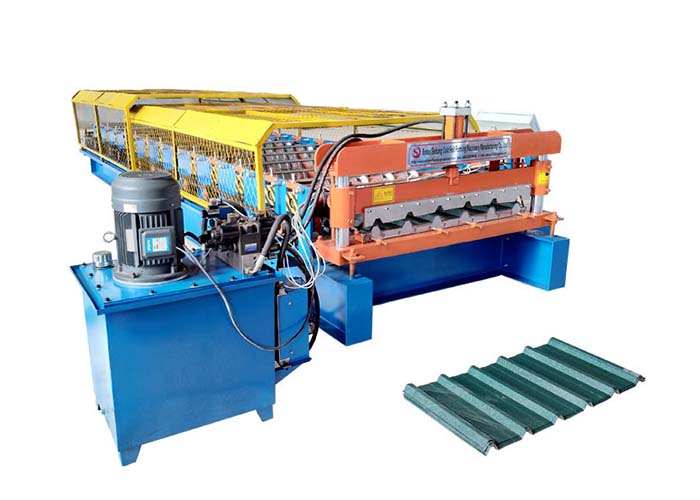

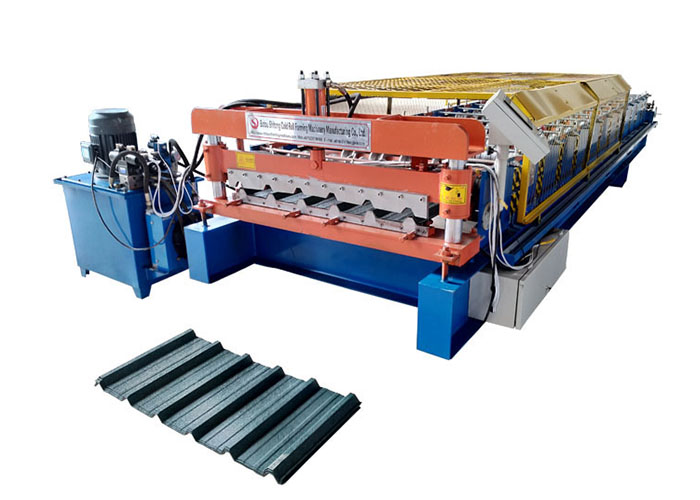

5. Roll forming machine pictures:
---- Machine adopt hydraulic drive system, the working speed can be 20-25meters/minute.
---- Chorme plate memorial gate type frame, the precision is higher than old design frame, suitable the high speed working machine.
---- Machine use famous brand PLC and other low voltage electric parts, the control system is more stable.
---- According to client's feedback, this type machine is much welcome by clients.
Raw material
material
PPGI, PPGL, GI, Steel, Aluiminum
thickness of coil sheet
0.3 to 0.8 mm
material expand width
914mm/1000mm/1200mm/1220mm/1250mm
Efficiency width
695mm/750mm/1000mm/1050mm
Machine details
roller material
high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material
high grade NO. 45 carbon wrought steel
cutting blade
Cr12 mould steel with quenched treatment
diameter of shaft
70mm
main frame
300-400mm H steel
forming steps
15 stations
productivity
8-12 m/min
hydraulic station power
4 KW
hydraulic pressure
10-12MPa
appearance size
6700mm*1500mm*1500mm
hydraulic oil
40# hydraulic oil
Electric tension
380V 50 Hz 3 Phase or as your requirement
Cut Mode
Hydraulic forming after cutting off
Cutter materia
Cr12 Heat Treatment
Electronic control system
PLC, Touch Screen, Encoding counter
Color
Blue, green or yellow or as your requirement
Rolling material
45# steel,roller surfaces polishing, hard plating
Service life
10 years
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
Botou Zhongchao International trading Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
