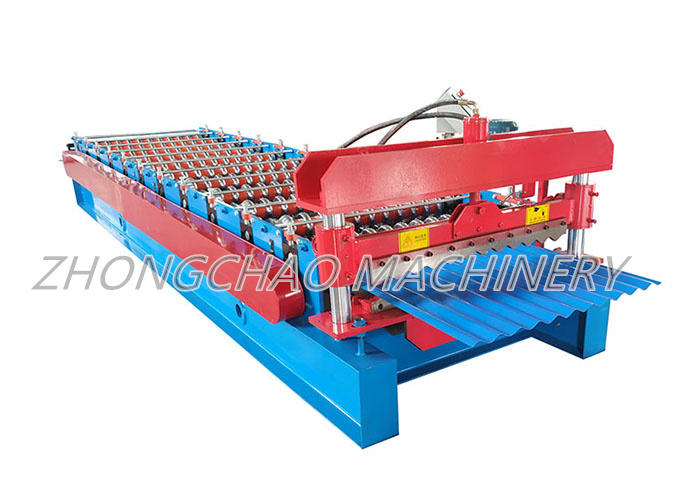

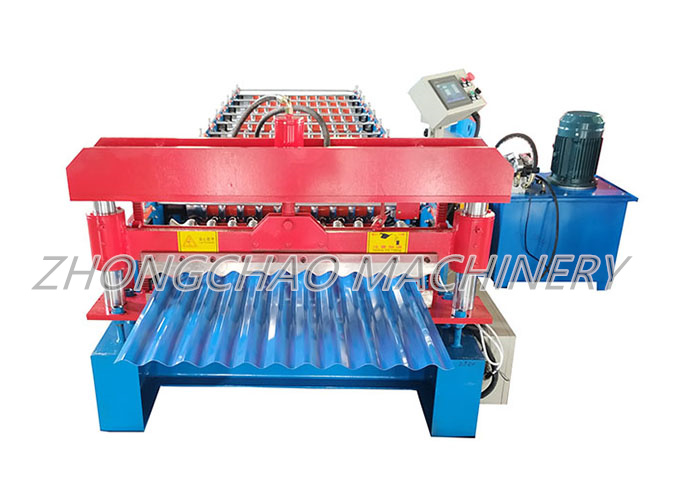

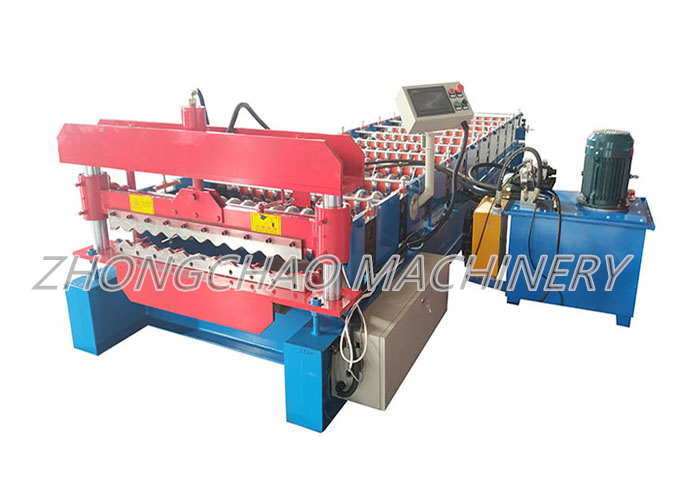

Galvanized Steel Corrugated Sheet Roll Forming Machine
| Coil Width | 1000mm | Main Frame | 300 H Steel |
| Name | Corrugated Sheet Roll Forming Machine | Cutter Materia | Cr12 Heat Treatment |
| Diameter of Shaft | ￠70mm | Cut Mode | Hydraulic Forming After Cutting Off |
| High Light | Corrugated metal roofing machine, corrugated roof sheet machine | ||
Fully Automatic Metal Roof Panel Corrugated Sheet Roll Forming Machine
Company Information
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
The business principal of our factory is “Customer First and Faith Foremost” and what we pursue is to meet the requirements of customers and do better for them. Businessmen from at home and abroad are welcomed to our factory for business talks and work hand in hand for the prosperous future.
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
The business principal of our factory is “Customer First and Faith Foremost” and what we pursue is to meet the requirements of customers and do better for them. Businessmen from at home and abroad are welcomed to our factory for business talks and work hand in hand for the prosperous future.
Technical Parameters
| Suitable Material | Colored Steel plate, Galvanized Board, Aluminum Plate |
| Width of The Raw Material | 1000mm |
| Effective Width | 836mm |
| Rows of Rollers | 13 rows |
| Appearance Size | 6.5*1.5*1.5m |
| Total Power | 4+4 kw |
| Thickness of Raw Material | 0.3-0.7mm |
| Productivity | 20-25m/min |
| Diameter of Shaft | ￠70mm |
| Voltage | 380V 50Hz 3phases |
| Roll Forming System |
Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect. The machine Section production and then splicing it. Cr12 Heat Treatment,roller surfaces polishing, hard plating. Support structure in the form of roller shaft. All motors use dedicated motor, has excellent mechanical properties. Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping. |
Flow Chart
Decoiler–Manual prectting–Material Guiding–Roll forming M/C–Hydraulic System–Post Cutting–Exit Rack
Decoiler–Manual prectting–Material Guiding–Roll forming M/C–Hydraulic System–Post Cutting–Exit Rack
Product Application

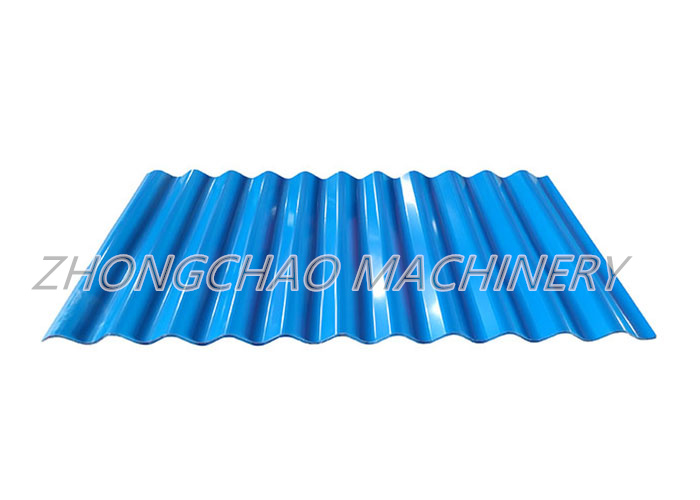

This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
Installation And Training
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
