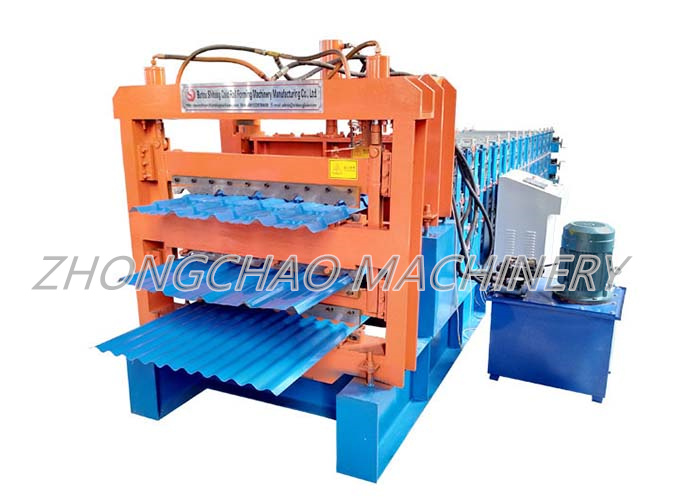

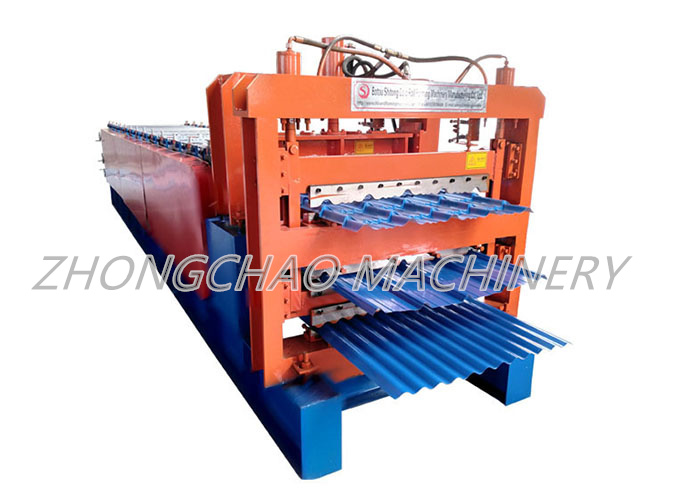

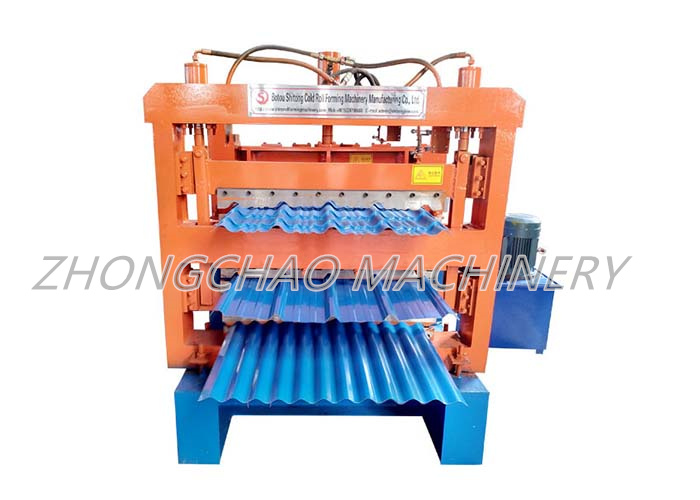

Detailed Product Description
Diameter Of Shaft: 70 Mm
Main Frame: 300 H Steel
Hydraulic Station Power: 7.5 KW
Material: Gi Ppgi Ppgl
Thickness: 0.3-0.8 Mm
Width: 1000 Mm
Forming Steps: 12 Stations and 11 Stations and 12 Stations
Speed: 20-25 M/min
Control System: PLC
Voltage: 380V 50HZ 3Phase

parameters

Suitable Material	Material	GI, PPGI, PPGL
	Width	1000mm
	Thickness	0.3-0.8mm
Material of rollers		High grade 45# forged steel, surface hard chromium plating
Rows of rollers		12stations 11stations 11stations
Material of shafts		High grade 45# forged steel
Diameter of shafts		70mm
Material of cutting blade		Cr12 Heat Treatment
Cutting Mode		Hydraulic Guide Column
Speed		20-25 m/min
H steel		300 mm
Total power		7.5 kw
Voltage		380V 50HZ 3Phase
Appearance size (About)		7500mm*1300mm*1500mm
Weight(About)		8 tons
Length measurement		Encoder
Control mode		PLC
Operating mode		Button + Touch screen

Packing Method
Main machine is packaged with plastic film

Transportation
All machines need one 20 feet container to hold

Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time
Within 30 days after receiving deposit.

Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
