Floor Decking Plate Steel Sheet Roll Forming Machines Manufacture
1. Features of Floor Decking Roll Forming Line:
The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
Applications of Floor Decking Roll Forming Line:
The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.
Process Flow of Floor Decking Roll Forming Line:
Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack
2. Parameters
3. roll forming machine company profiles
4. Business terms:
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
5. FAQ(about our roll forming machine)
1) Q: How to choose the machine,any information i need to offer?
A: You need to provide the product drawings.
2) Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3) Q: Do you provide customized?
A: Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
4) Q: What can you do if the machine broken?
A; Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5) Q::Do you accept private label? Customize logo printed or package ?
A:Yes,they are all welcome as your request.

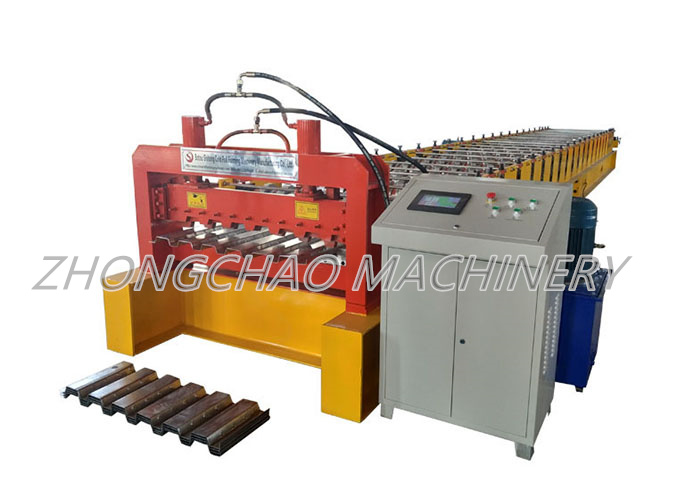

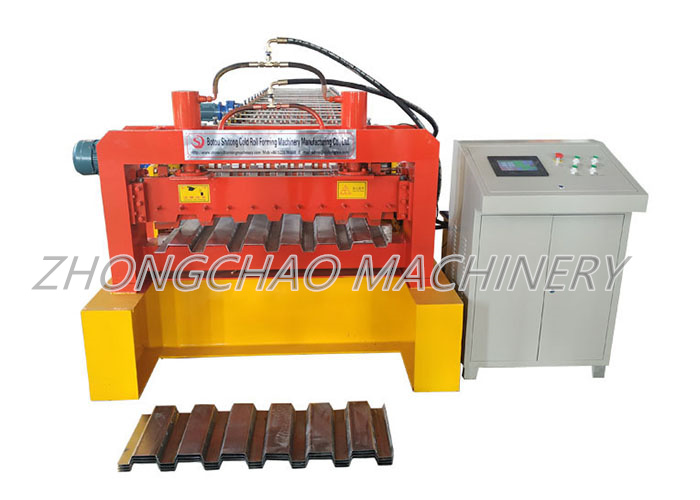

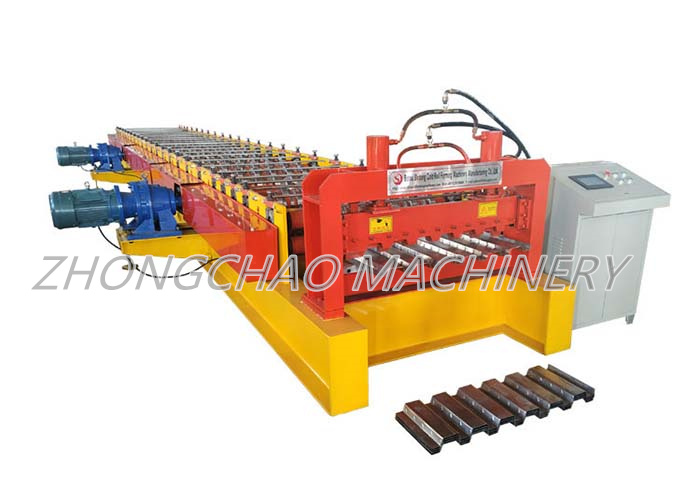

6. Roll forming machine pictures:
Suitable Material
Material
GI, PPGI, PPGL
Width
1200 mm
Thickness
0.8-1.2 mm
Material of rollers
High grade 45# forged steel, surface hard chromium plating
Rows of rollers
24 stations
Material of shafts
High grade 45# forged steel
Diameter of shafts
90mm
Material of cutting blade
Cr12 Heat Treatment
Speed
15-20 m/min
Side plate thickness
20 mm
Chain size
2 inch
Total power
22 kw
Voltage
380V 50HZ 3Phase
Appearance size (About)
12000mm*1800mm*1700mm
Weight(About)
13 tons
Length measurement
Encoder
Control mode
Delta PLC
Operating mode
Button +Delta Touch screen
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
