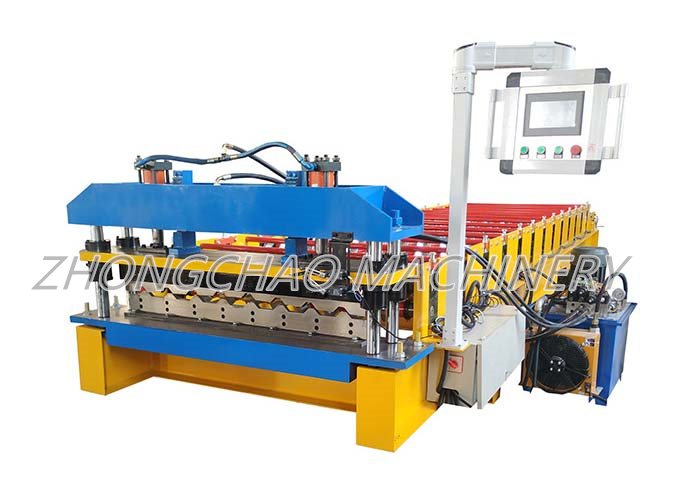

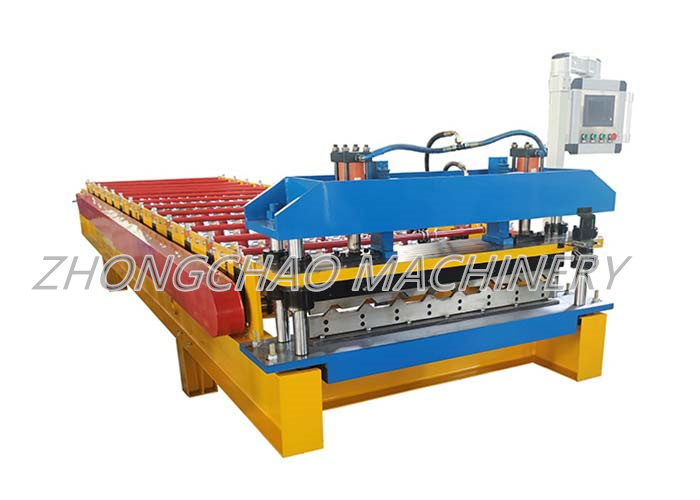

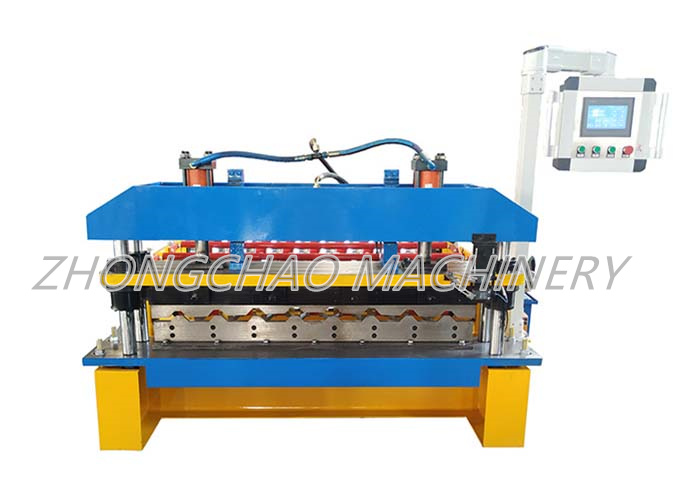

Euro Standard Automatic Galvanized Roof Tile Roll Forming Machine
1. Company information
2. Technical parameters:
PLC control
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
4. After service
5. The advantages of our service :used metal roof panel roll forming machine/building material machinery /portable roll forming machine
FAQ
BOTOU ZHONGCHAO INTERNATIONAL TRADING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
We have high quality professional teams,skillful talents,strong technical force,strong and indenpendent reaserch and development capabilities,advanced production equipment and a perfect after-sales service system.We have great confidence in the quality and precision of our product.Our customers feedback said that it is a great machine,no noise,clean,very advanced technology ,and it also has the features of light sturcture and reasonable design.
configurations
manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
Material
processing material
Colored Steel plate, Galvanized Board, Aluminum Plate
thickness
0.3mm-0.8mm
Efficienty width
1000mm
Coil width
1200mm
Manual decoiler
The maximum load capacity:5 ton
Expand by band
The coil inside diameter:450-550mm
Suitable Coil width:1250mm
Main Forming machine
Forming steps
13steps
Shaft diameter
70 mm
Thick of arch frame
16mm
Frame body
High strength steel pipe weld with color steel sheet cover
roller material
45# steel
shaft material
45# steel
cutter material
Cr12 mold steel with quenched treatment
Transmission
By 1” chain
Work speed
20-25m/min
Hydraulic system
Automatic hydraulic cutting after forming, without wasting.
Control Device
touch screen
Program language: English/Chinese(or as required)
Operating mode
Button+touch screen
Total power
4 kw
Main body color
Blue and orange(or as required)
Voltage
380v/50hz/3ph(or as required)
and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
A. One year guarantee for whole machine.
B. 24 hours technical support by email or phone call.
C. If there is any problem found of the machine, we will repair it for free in one year.
1. Meeting clients’ diversified requirements on machines.
2. High quality machine with reasonable price.
3. Guaranteeing the quality of machine we providing.
4. Every process will be checked by responsible QC which insures every product's quality.
5. Professional packing teams which keep every packing safely.
Q1: How can I contact salesman?
A1: Please call 0086-13962271265 or send email to export at beatlestech.com.
Q2: Can I have Beatles products catalog and price list?
A2: Please visit our English website www.beatles.en.alibaba.com and send us email or inquiry for price.
Q3: How long does it take to get the product if I place an order?
A3: 30 Workdays After We Receive The 30% Advance Payment.
Tel:+86-15930785588
Whatsapp:+86-15930785588
Fax:+86-15930785588
Email:robin@chinasupercompany.com
Address:West Side Of No. 1 Road, Economic Development Zone, Botou, Hebei, China (Mainland)
Please feel free to give your inquiry in the form below.We will reply you within 24 hours
