1. Brief introduction of our machine

The machine production line includes: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting system, discharge table

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

2. Specifications of the roll forming production line

1. Suitable material	Color steel sheet , galvanized steel sheet,aluminum sheet
2. Installation Dimension (L*W*H):	6.5m*1.5m*1.4m(depend on design)
3. Main motor power	About 3KW to 6KW with Cycloidal reducer
4. Hydraulic station power	About 3KW to 6KW
5. Hydraulic oil pump	CB-E 310
6. Thickness of material	0.2mm~0.8mm
7. Diameter of principal axis	Φ70mm to Φ90mm
8. Material expand width	1000,1200,1250mm
9. Electric tension	380V 3phase 50HZ or as the customer's requirements
10. Material of roller	High grade 45# forged steel plated with hard chrome plating
11. Controlling system	PLC control canbinet
12. Processing speed	3-5m/min
13. Processing precision within	1.00mm (depend on design)
14. Material of cutting blade	Cr12 mould steel with quenched treatment
15. Kind of drive	0.6 inch chain link bearing model 6210
16. Roller station	8-20 Rollers
17. Roller material	high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing	4.6T

3. The relative service we can provide

1). The warranty of glazed tile roll forming machine

is one year after the client receives the machine.

Within the one year, we will courier the replacement parts to the client free of charge.

2). We offer technical support for the entire life of our machines.

3). We can send our technicians to install and train the workers in the clients' factories with extra cost.

4. PLC Control System

It adopts industrial computer to control.

The target piece’s length is adjustable and digit of it can be adjusted.

Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.

5. Our company brief

　Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence “the quality first, the prestige first”, we wish to build the best machine for customers. So our company all employee’s enthusiasm welcome the people of different walks of life come to investigate and talk cooperation.

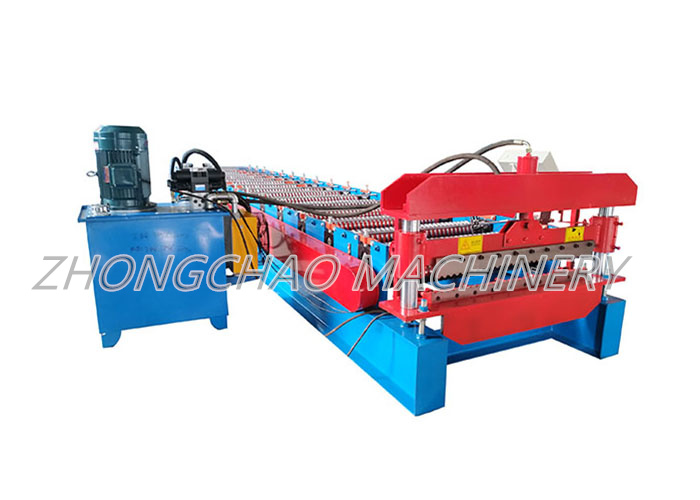

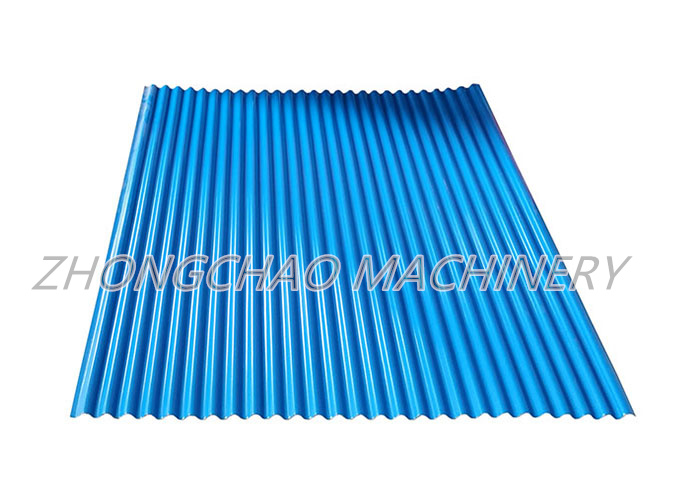

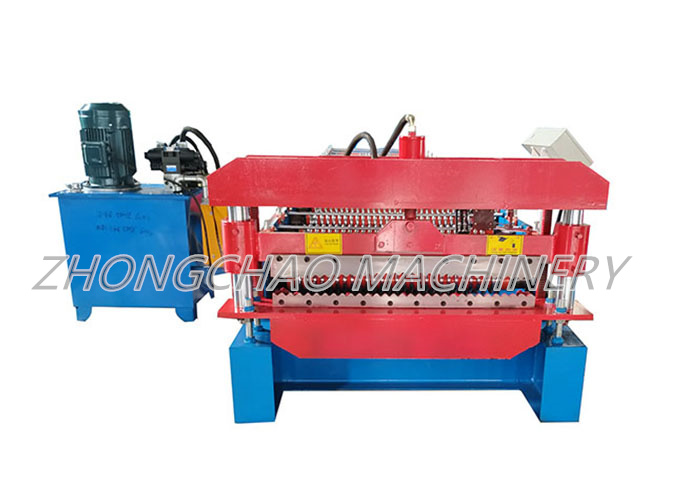

6. Some machine pictures for your reference
