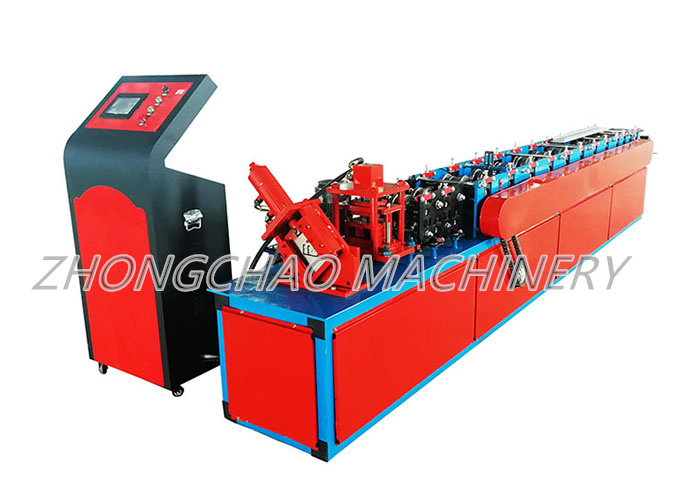

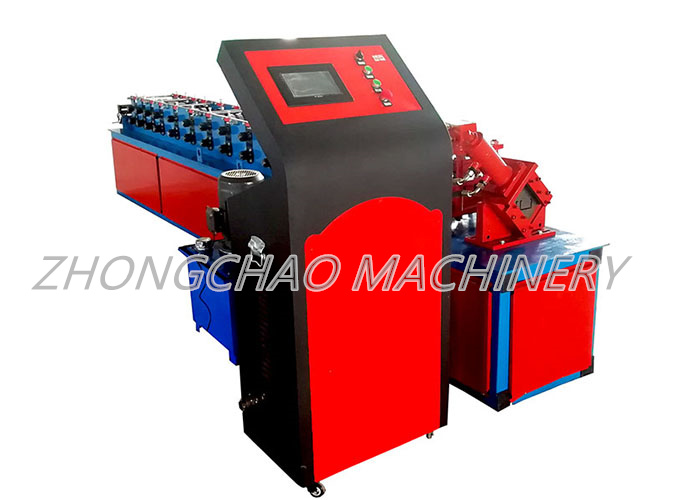

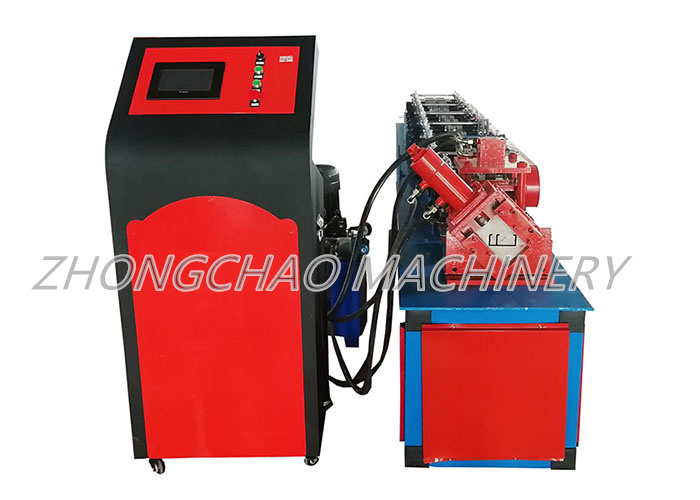

Column Hydraulic Cutting 55mm Shaft Channel Rolling Machine High Speed
1. Column Hydraulic Cutting 55mm Shaft Channel Rolling Machine High Speed
--- Serval group continuous forming rollers let the galvainized steel easy forming.
--- During forming, a hydraulic punch mold can puch holes on the frame.
--- A PLC control program can control the forming and punching coordinately.

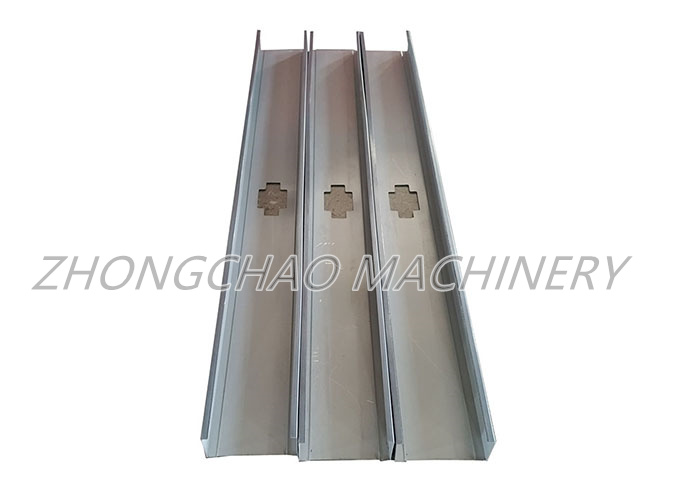

--- The finally products use for steel construction frames.
2. Column Hydraulic Cutting 55mm Shaft Channel Rolling Machine High Speed parameters
3.With more than 24 years of manufacturing experience, professional knowledge and excellent human resources, the ceiling keel produced has two structures, the medium and small keel is close to the large keel, and the bottom is suspended (That is, not on the same level) is called a double-layer structure; the bottom surface of the large and medium keels are on the same level, or the middle keel is directly hung without the large keel, it is called a single-layer structure. The latter is only used for light ceilings. Customize suitable molding manufacturing equipment according to customer needs. In addition, all the parts and components on the equipment come from first-line brands at home and abroad, which are high-quality products certified by ISO and CE. The equipment operating system adopts a well-known international operating system, which can be selected according to the user's local language, and customized operating settings can be used to achieve a strong combination of hardware and software to enhance the good experience of use and operation.
4. Comapny advantage:
In Botou, we start the pressure roll forming machine export business from 2008.
As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.
Provide best price,good quality and fast delivery.
5. FAQ
1.Does one machine can only produce one style panel profile?
6.Our company provides design layout drawings, designers with professional qualifications, according to your layout parameters, for you to exclusively design machine solutions, we can also design the machine according to the factory area you provide Land area, and labor demand.
Suitable Material
Material
Steel, galvanized steel
Thickness
0.28-0.4 mm
Material of rollers
High grade 45# forged steel, surface hard chromium plating
Rows of rollers
12 stations
Material of shafts
High grade 45# forged steel
Diameter of shafts
50 mm
Material of blade
Cr12 Heat Treatment
Speed
10-15 m/min
Side plate thickness
16 mm
Total power
4 kw
Voltage
380V 50HZ 3Phase
Appearance size (About)
5000mm*800mm*1500mm
Weight(About)
1.5 tons
Electronic control system
PLC + Touch Screen
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
