quick details:
Warranty: 1 Year
Type: Gutter Forming Machine
Production Capacity: 0-18 m/min
Power(KW): 5.5
Certification: CE/ISO9001
Tile Type: Metal Steel, Color plate, aluminium plate, galvanized plate
Voltage: 380V, 50HZ,3 phase
Dimension(L*W*H): About 7m*1.8m*1.2m
Weight: About 7-8 Tons

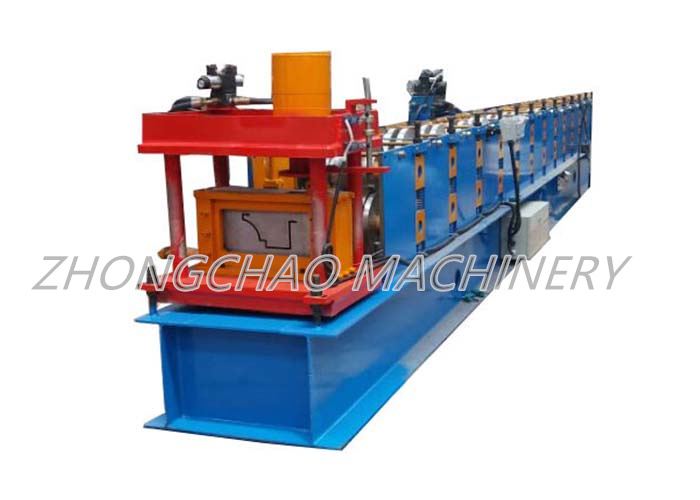

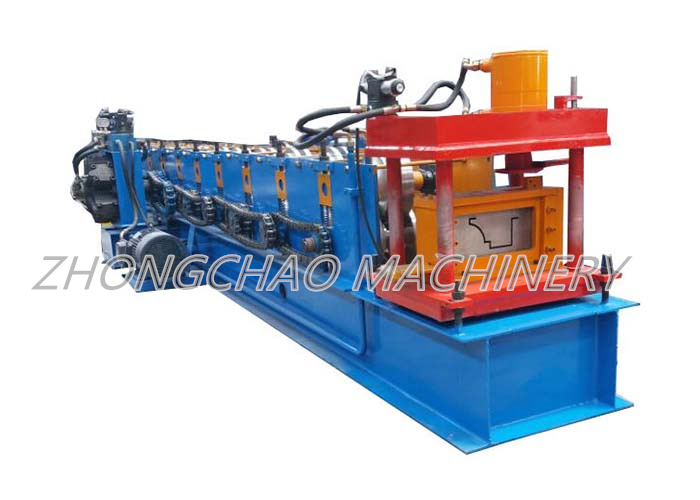

Name: used seamless aluminium rainwater gutter roll forming machine for sale
Raw material: galvanized metal steel,PPGI,PI,CR,steel coil,or equivalent
Thickness(mm): 0.3-0.8

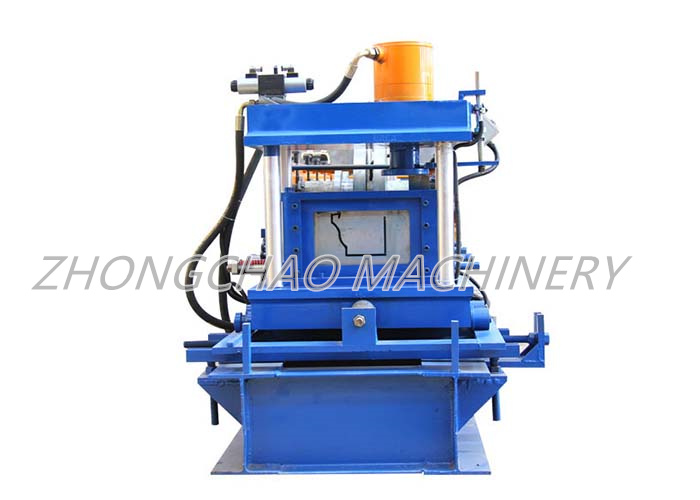

Cutting system: Hydraulic die cutting
Technical Specification
| Item | Parameters | |
| According to buyer's requirements | ||
| Raw material | Type | PPGI, PI, CR , Steel Coil, or equivalent |
| Thickness(mm) | 0.3-0.8 | |
| Width of the feeding material | According to buyer's final confirmed profile drawing | |
| Yield strength(Mpa) | 230-550 | |
| Forming speed(m/min) | 0-18 | |
| Roller material | 45 # sheet with chrome coated | |
| Roller driven type | Chain transmission | |
| Control System | PLC (Panasonic) as list in the note | |
| Operation type | Touch screen + button | |
| Hydraulic system pressure( MPa ) | 12 | |
| Hydraulic motor power ( KW ) | 5.5 | |
| Main motor power(KW) | 2 * 5.5 | |
| Shaft Material and DIA | 65mm, material is 45 # forge steel | |
| Electric Source |
380V, 50HZ,3 phase According to customer’s require |
|
| Roller stations | 16 | |
| Dimension(L*W*H) |
Forming Section about 7m*1.8m*1.2m |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
