Cold rolled metal floor deck making machine roll forming machine

BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

Our business ablity

Till now,we have export to more than 50 countries and areas.Tha main market is South America,Africa,middel east,eastern Europe,Southeast Asia.We also take part in different exhibitions all over the world.

2. Galvanized Steel Floor Deck High Speed Roll Forming Machine For Decking Forming parameters



Suitable Material	Material	GI, PPGI, PPGL
	Width	1200 mm
	Thickness	0.8-1.2 mm
Material of rollers		High grade 45# forged steel, surface hard chromium plating
Rows of rollers		24 stations
Material of shafts		High grade 45# forged steel
Diameter of shafts		90mm
Material of cutting blade		Cr12 Heat Treatment
Speed		15-20 m/min
Side plate thickness		20 mm
Chain size		2 inch
Total power		22 kw
Voltage		380V 50HZ 3Phase
Appearance size (About)		12000mm*1800mm*1700mm
Weight(About)		13 tons
Length measurement		Encoder
Control mode		Delta PLC
Operating mode		Button +Delta Touch screen




Machine Components
No.	Name	QTY
1	Manual uncoiler	1 set
2	Feeding and leveling device	1 set
3	Roll forming system	1 set
4	Hydraulic punching and cutting	1 set
5	Product support frame	1 set
6	PLC Control System	1 set

3. roll forming machine company profiles

The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


4. FAQ (about our roll forming machine)


1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.


2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.


3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.


4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.


5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.


6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.


7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.


8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

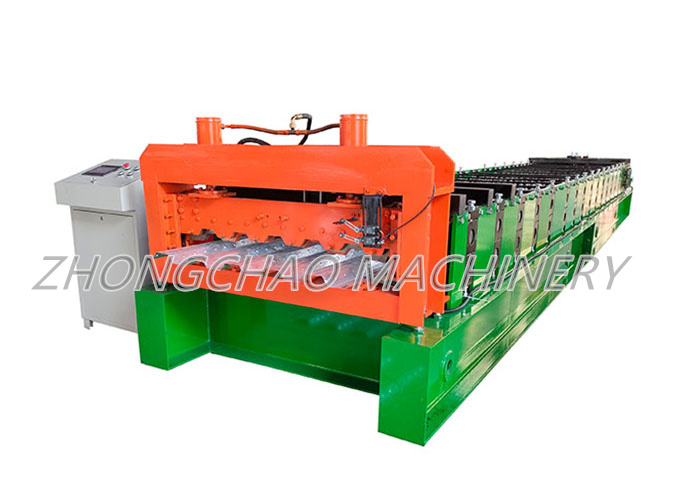

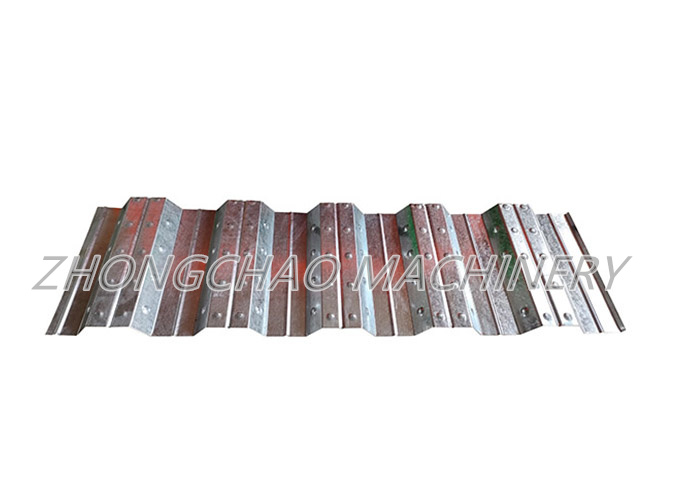

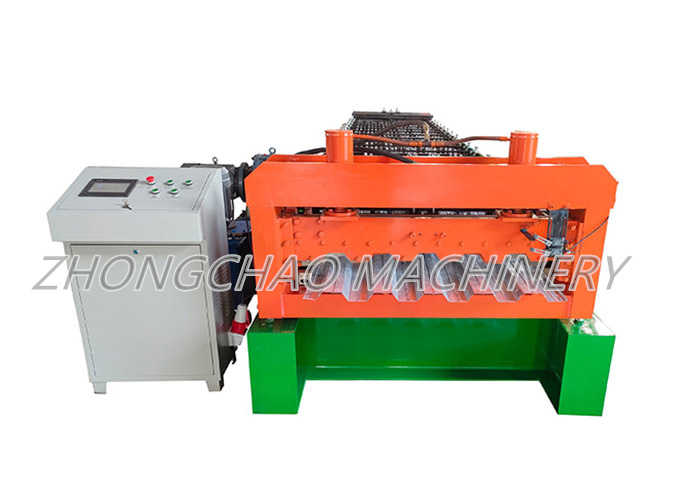

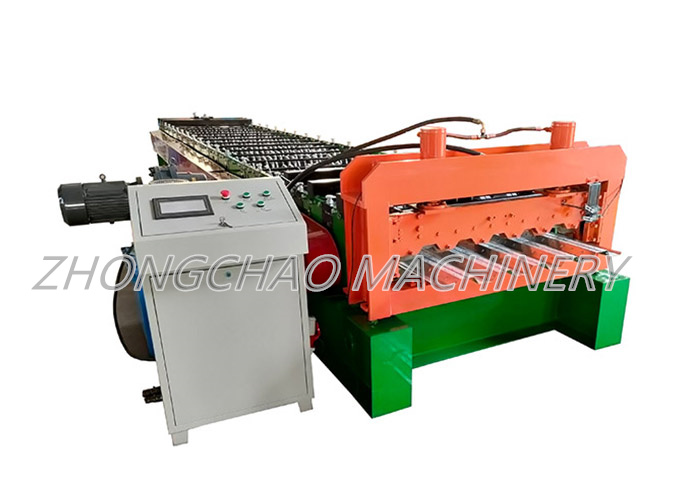

5. Roll forming machine pictures:
