CE certificate embossing shutter steel roll forming machine made in China
CE certificate embossing shutter steel roll forming machine made in China
  • Description
  • Contact us

CE certificate embossing shutter steel roll forming machine made in China

1. CE certificate embossing shutter steel roll forming machine made in China

The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.

Now our shutter door roll forming machine have been exported to many countries, the most important is that all you need can be customized.



2. CE certificate embossing shutter steel roll forming machine made in China parameters

Suitable Material Colored Steel plate, Galvanized Board, Aluminum Plate
Thickness 0.3-0.8mm
Color As you like
Appearance size (About) 5.0*0.8*1.3m
Rows of rollers 12 rows
Rolling material 45# steel,roller surfaces polishing, hard plating
Diameter of shaft 38mm
Total power 4 KW
Productivity 15-20m/min
Cutter material Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. The advantages of Floor Decking Tile Press Roll Forming Machine
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3. We can make and design will kinds of roll forming machine according to customer's request.



Sales Service:
1. we provide the technical support for whole life of our machines.
2. If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.


5. FAQ

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler

Q: How to visit your company?

A:a. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

Q: What can you do if the machine broken?

A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

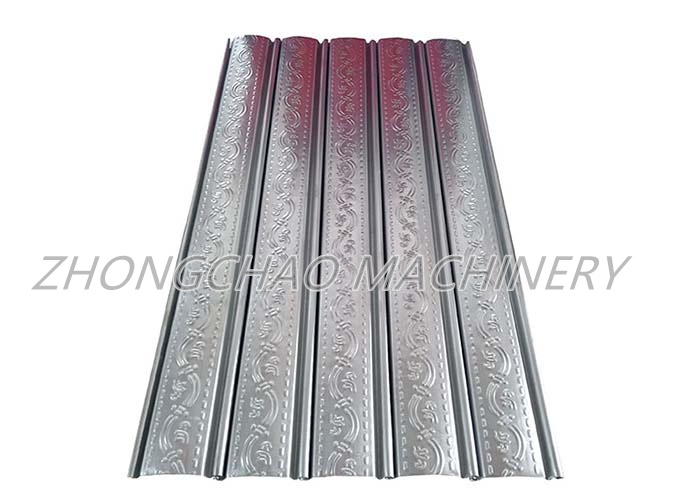

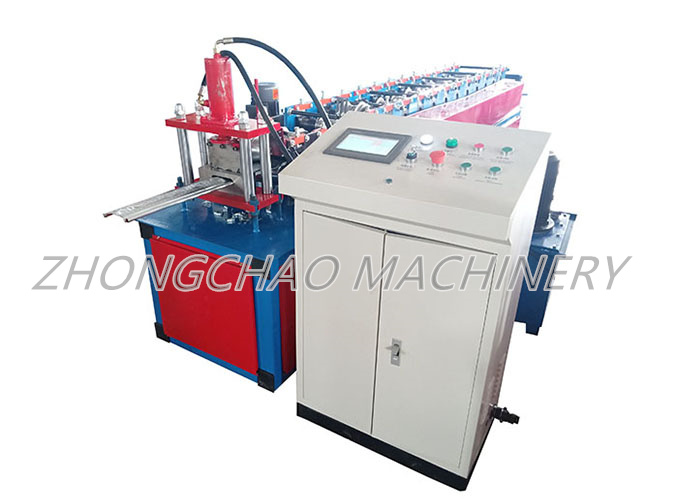

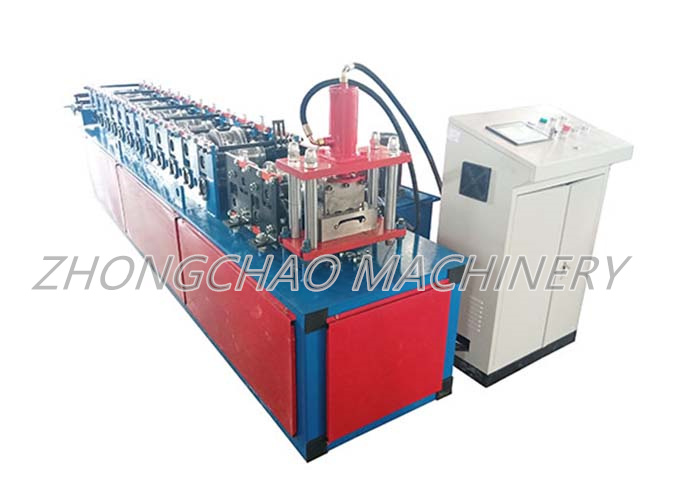

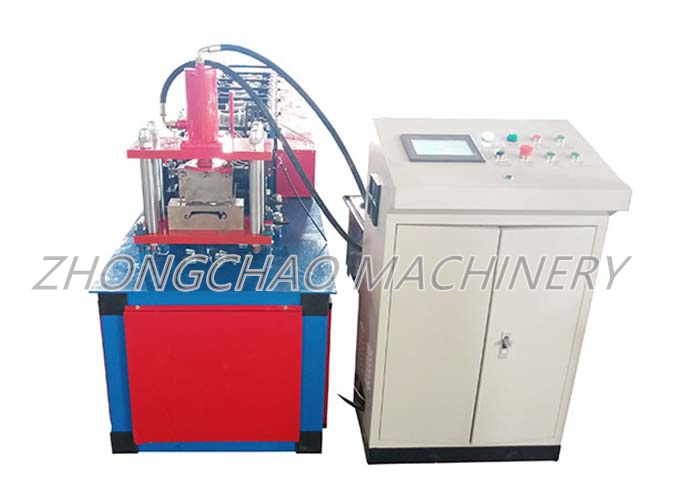

6. Roll forming machine pictures:

CE-certificate-embossing-shutter-steel-roll-forming-machine-made-in-China-2.jpgCE-certificate-embossing-shutter-steel-roll-forming-machine-made-in-China-3.jpgCE-certificate-embossing-shutter-steel-roll-forming-machine-made-in-China-4.jpgCE-certificate-embossing-shutter-steel-roll-forming-machine-made-in-China-5.jpg
