CE Standard Building Material Steel Sheet Coated Panel Toofing Sheet Roll Forming Making Machine

Technical parameters:



Suitable Material Material GI, PPGI, PPGL
Width 1200 mm
Thickness 0.3-0.8 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 17 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 70 mm
Material of cutting blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 20-25 m/min
Side plate thickness 16 mm
H steel 300 mm
Chain size 1 inch
Total power 5.5 kw
Voltage 380V 50HZ 3Phase or as your requirement
Appearance size (About) 8*1.7*1.5m
Weight(About) 4.5 tons
Length measurement Encoder
Control mode PLC
Operating mode Button + Touch screen
Specification

Corrugated Sheet Roll Forming Machine
1.Raw material Thickness 0.25-0.75mm
2.Decoiler Operation automatic
Weight apacity 3.5-6t
3.Main body Roller station 13-18 rows
Diameter of shaft 70-80mm
Material of rollers 45# steel
Material of shaft 45# steel
Frame 16-18mm
Chain 1.32-1.97inch
4.Cutter Operate auto
Blade Material cr12mov
5. Power Voltage customized
Power 5.5-7.5kw
6.Control system Electric Box customized/Delta
Language english chinese/customzied
7.Forming Speed Forming Speed 3-4m/min



Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold



Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



FAQ

Q:Are you a manufactuer or trading company?
A:We are a manufacturer specialized in producing all kinds of roll forming machines.
Q:Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.

Q:What is the payment terms?
A:T/T (30% by TT in advance, the rest 70% to be payed by TT after you inspect the machine in sell s factory before delivery)and T/C.

Q: What can you do if the machine broken?
A: Our machine's quality is very good. And we supply the technical support for the whole life. Because the warranty is one year, if the broken parts can't repair, we will send you the new parts freely. But you need pay the express cost yourself. Thanks for your understanding. If after the warranty period, we can solve the problems through negotiation.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. TY is ALIBAB’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers’ specifications, using top brand name components.

Q: How does your factory do regarding quality control?
A: Quality is priority. TY People always attach great importance to qulity control from the very beginning to the end of the
production. Every product will be fully assembled and carefully tested before it’s packed for shipment. Be reassured please.
Q: Can you be responsible for transport?
A: Yes. Please tell me the destination port or address. We have rich experience in transport.
Q: Can you supply the raw materials?
A: Yes. We can supply the color steel coil, galvanized steel coil, galvalume steel coil and aluminum coil.

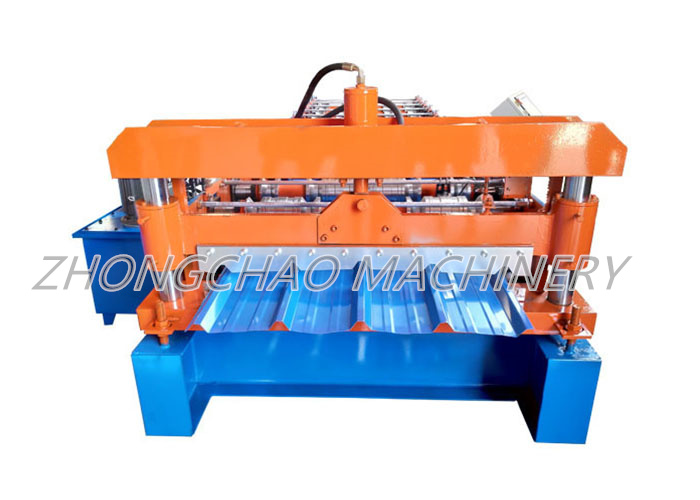

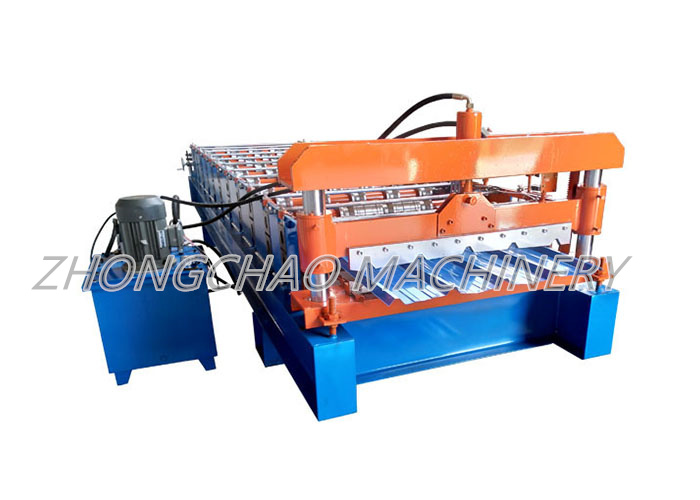

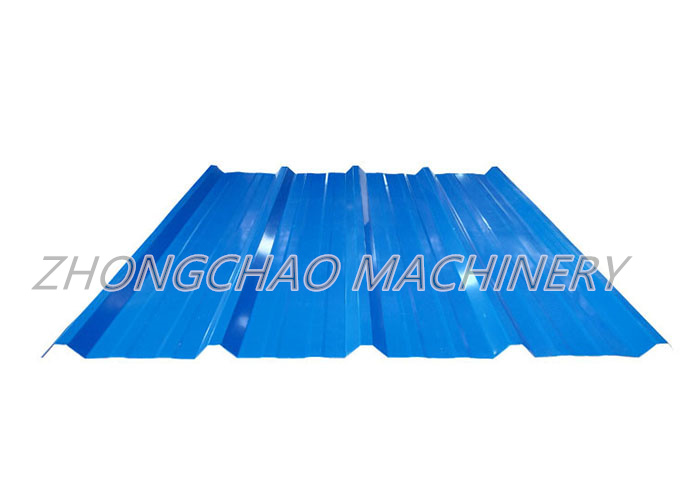

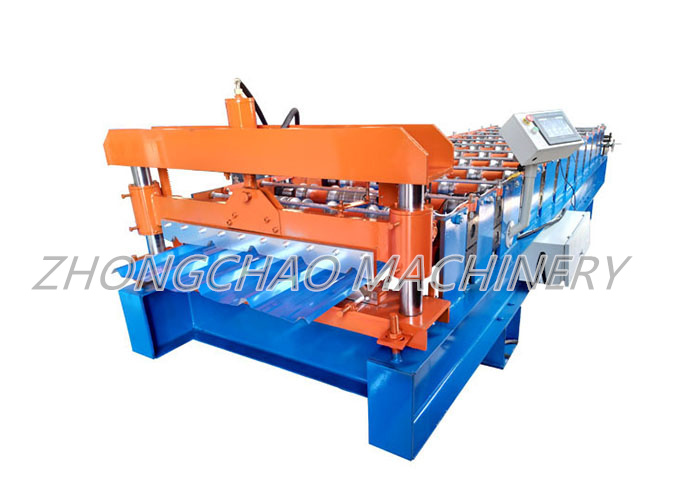

CE-Standard-Building-Material-Steel-Sheet-Coated-Panel-Toofing-Sheet-Roll-Forming-Making-Machine-2.jpgCE-Standard-Building-Material-Steel-Sheet-Coated-Panel-Toofing-Sheet-Roll-Forming-Making-Machine-3.jpgCE-Standard-Building-Material-Steel-Sheet-Coated-Panel-Toofing-Sheet-Roll-Forming-Making-Machine-4.jpgCE-Standard-Building-Material-Steel-Sheet-Coated-Panel-Toofing-Sheet-Roll-Forming-Making-Machine-5.jpg
