C80-300mm purlin roll forming machine with punching holes
|
Voltage |
380V Or As Customize | Weight | 6.5T |
| Warranty | 2 Years | Dimension(l*w*h) | 7000*800*1200mm |
| Production Capacity | 10-15m/min | Name | Steel Profile Roll Forming Machine |
| High Light | Purlin roll former, steel frame roll forming machine | ||
Equipment Detailed Parameters
| Raw Material | |
| Material Spec | Sheet, galvanized steel sheet, aluminum sheet |
| Thickness of Coil Sheet | 0.8-2 mm |
| Machine Details | |
| Roller Material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft Material | High grade NO. 45 carbon wrought steel |
| Cutting Blade | Cr12 mould steel with quenched treatment |
| Diameter of Shaft | 90 mm |
| Forming Steps | 12 rows |
| Productivity | 8-12 m/min |
| Hydraulic Station Power | 11 KW |
| Hydraulic Pressure | 10-12MPa |
| Controlling System | Famous PLC computer control |
| Material of Cutting Table | Cr 12 mould steel with quenched treatment |
| Appearance Size | 7500mm*1000mm*1500mm |
| Hydraulic Oil | 40# hydraulic oil |
| Electric Tension | 380V 50 Hz 3 Phase or as your requirements |
12 Months guarantee. If some part of the machine is broken, we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-Sale Service
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
FAQ
1. You are the manuafacturer or trading company?
A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.
2. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation of the machine.
4. What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

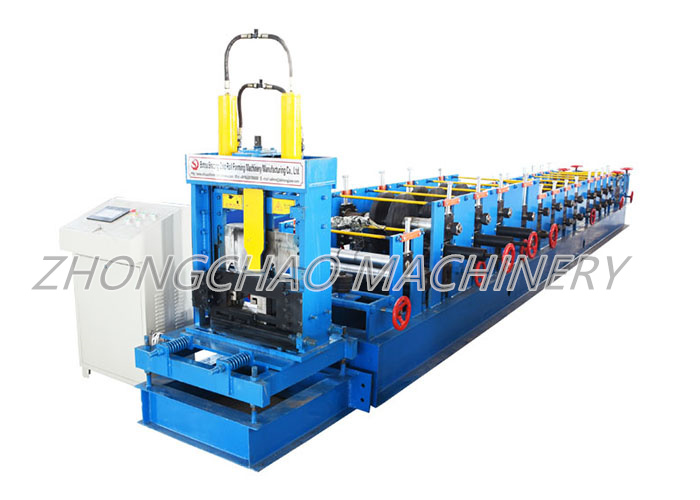

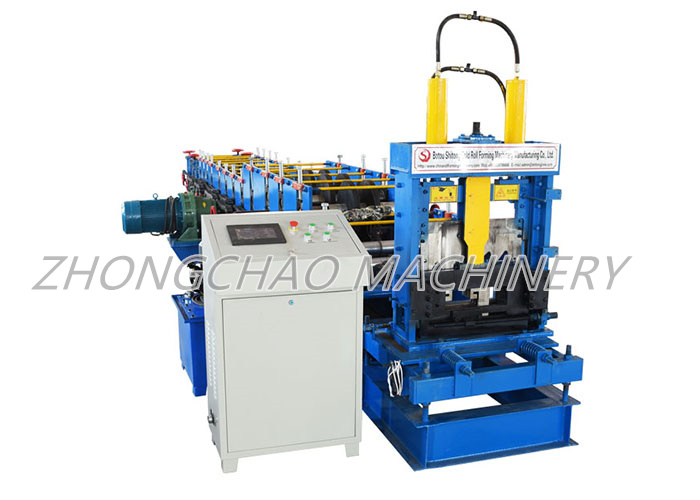

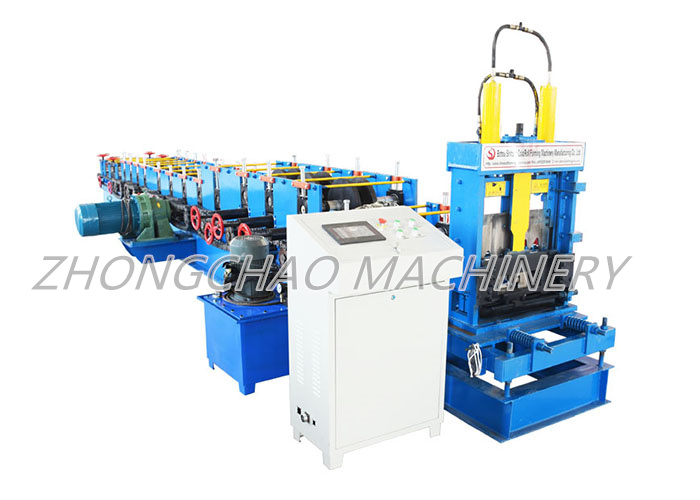

Machine pictures
