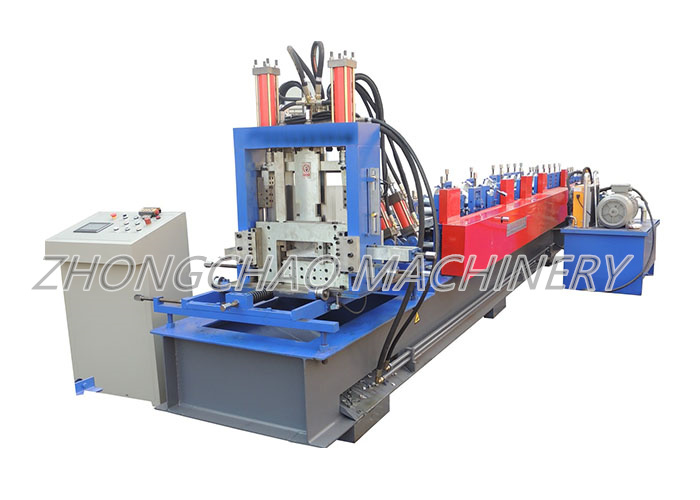

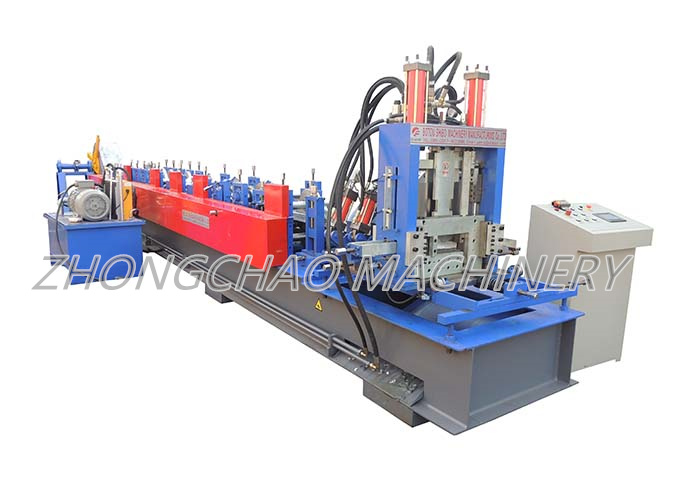

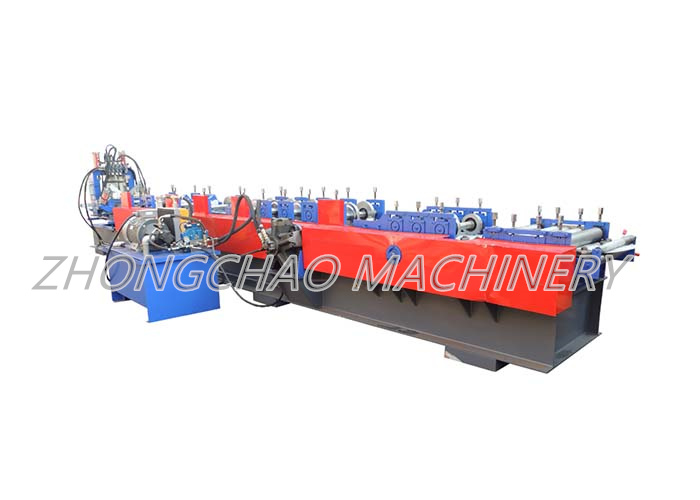

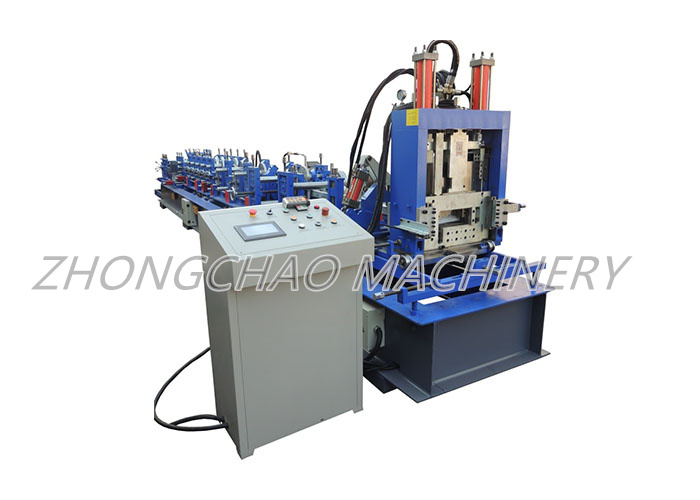

C Z interchanged purlin machine c z purlin roll forming machine
Warranty: 2 Years
Power(W): 15kw
Certification: CE/ISO9001, ISO
After-sales Service Provided: Free spare parts, Field installation, commissioning and training,
Applicable Industries: Manufacturing Plant
Work Pressure: Normal Pressures
Production Capacity: 8-12m/min
Voltage: 380V/50HZ 3Phase(as Customer's Request)
Dimension(L*W*H): 8m*1.1m*1.2m
Weight: 7.5T
Key Selling Points: Automatic
Color: customized
Product name: C Shaped Roll Forming Machine
Machine parameter
rticle No.
Item Name
Specification
1
Effective width
80-300 mm
2
Thickness of feeding material
1-3 mm coil sheet
3
Roller station
8-12 stations
4
Shaft Diameter
80 mm
5
Productivity
8-12 m/min
6
Rollers' material
45# steel forge
7
Shaft material
45# steel
8
Weight
8tons
9
length
8 m
10
Voltage
380V 50Hz 3phases
11
Control
PLC
12
Decoiler
5 tons
13
Motor
11kw
14
Driving way
Chain transmission
15
Chain size
1-2 inch
16
Cutting system
Hydraulic cutte
1) Changing size: automatic,change sizes by press button.
2) Adjust the screw pole manually to adjust the distance between upper and lower rollers to form different thickness product
3) Quick change C to Z
Purlin in any size can be made without changing cutting molds. It’s different from traditional cutting device
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 50 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
