1.Automatic floor deck color steel rolling machine
---- We adopted a no stop cutting system to enhance the machine running speed.
4. FAQ (about our roll forming machine)
1. Does one machine can only produce one style panel profile?
2. Do you have after sales support?
3. How to visit your company?
4. What can you do if the machine broken?
5. Can you be responsible for transport?
6. You are Trade Company or factory?
7. Why your price is higher than others?
8. How long the machine could be made?
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.
2. Automatic floor deck color steel rolling machine parameters
Suitable Material
Material
GI, PPGI, PPGL
Width
1200 mm
Thickness
0.8-1.2 mm
Material of rollers
High grade 45# forged steel, surface hard chromium plating
Rows of rollers
24 stations
Material of shafts
High grade 45# forged steel
Diameter of shafts
90mm
Material of cutting blade
Cr12 Heat Treatment
Speed
15-20 m/min
Side plate thickness
20 mm
Chain size
2 inch
Total power
22 kw
Voltage
380V 50HZ 3Phase
Appearance size (About)
12000mm*1800mm*1700mm
Weight(About)
13 tons
Length measurement
Encoder
Control mode
Delta PLC
Operating mode
Button +Delta Touch screen
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
Yes, please tell me the destination port or address.we have rich experience in transport.
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

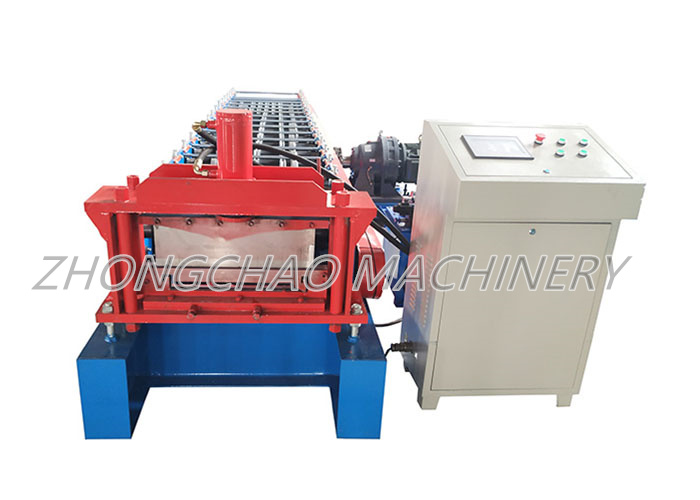

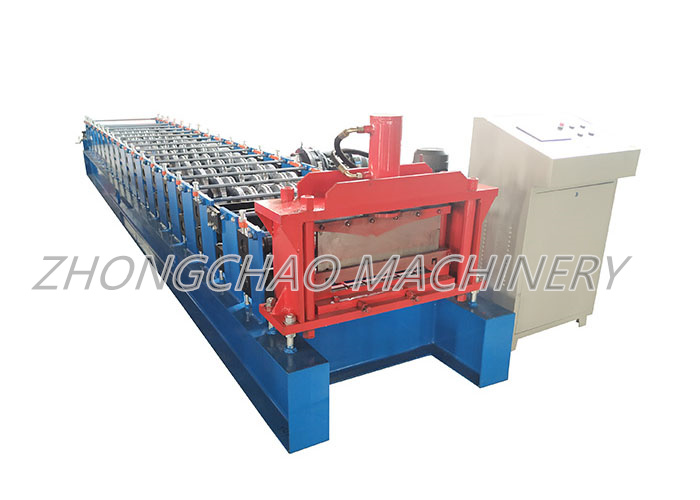

5. Roll forming machine pictures:


Tel:+86-15930785588
Whatsapp:+86-15930785588
Fax:+86-15930785588
Email:robin@chinasupercompany.com
Address:West Side Of No. 1 Road, Economic Development Zone, Botou, Hebei, China (Mainland)
Please feel free to give your inquiry in the form below.We will reply you within 24 hours
