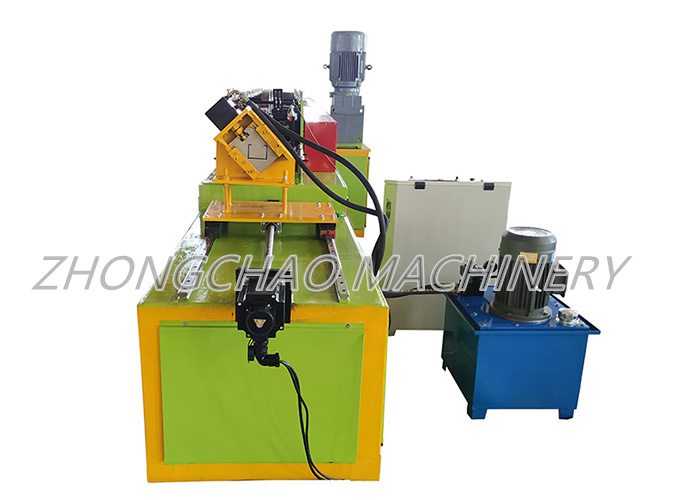

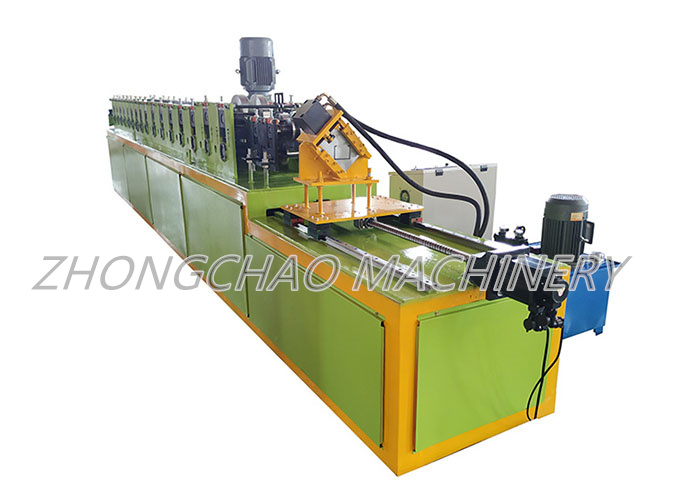

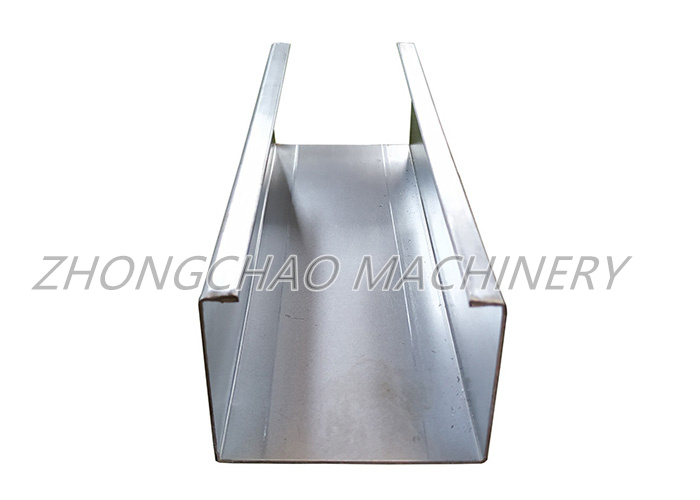

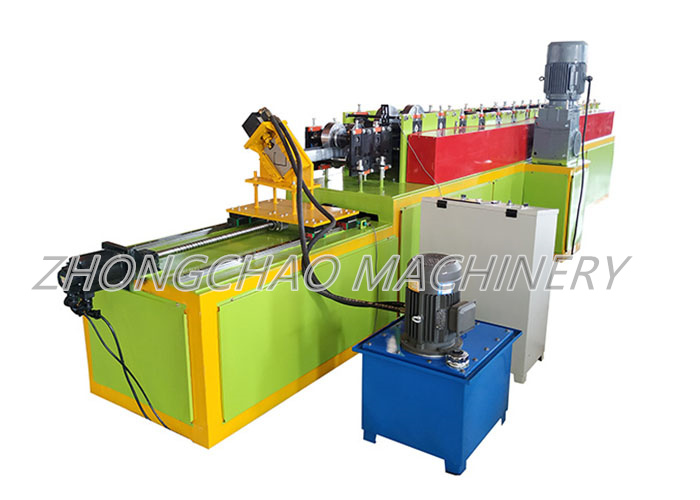

Automatic Roof Truss Steel PLC C Channel Roll Forming Machine
Technical parameters:
| Suitable Material | Material | Steel, galvanized steel |
| Thickness | 0.3-0.8 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 12 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 50mm | |
| Material of blade | Cr12 Heat Treatment | |
| Speed | 10-15 m/min | |
| Side plate thickness | 16 mm | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5000mm*1000mm*1500mm | |
| Weight(About) | 2 tons | |
| Electronic control system | PLC + Touch Screen | |
Our Services
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
