Automatic Corrugated Iron Steel Roofing Sheet Metal Roll Forming Machines
1. Automatic Corrugated Iron Steel Roofing Sheet Metal Roll Forming Machines
3. roll forming machine company profiles
Installation and training:
1. If the buyer visits our factory and inspects the machine, we will teach you how to install and use the machine, as well as face-to-face training of workers/technicians.
2. No need to visit, we will send you the user manual and video to teach you how to install and operate.
B. Our service:
1. Accept customer's design, size, color, logo.
2. With more than 20 years of professional manufacturing experience.
3. Timely delivery and competitive price.
4. Main markets: Middle East, Europe, North America, Africa, Southeast Asia.
C. After-sales service:
1. We provide technical support for the entire life cycle of the machine.
D. Remarks:
1The machine can set the color according to your requirements
2If any parts are damaged within one year, we will provide new parts for replacement free of charge
3If you want to learn more about this product, please log in to our website or sign a contract with us.

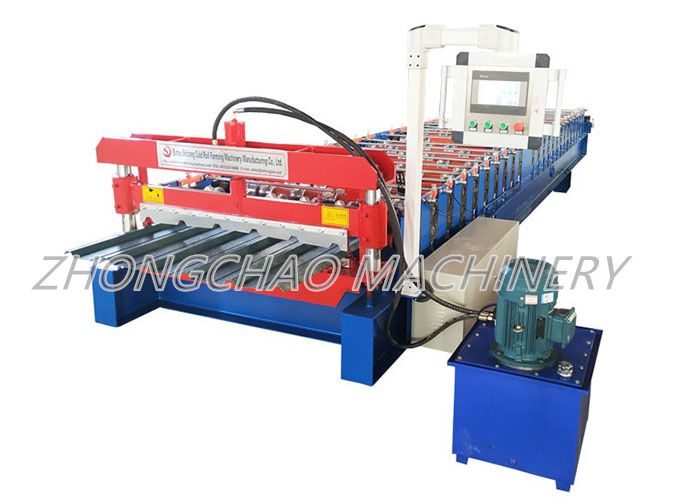

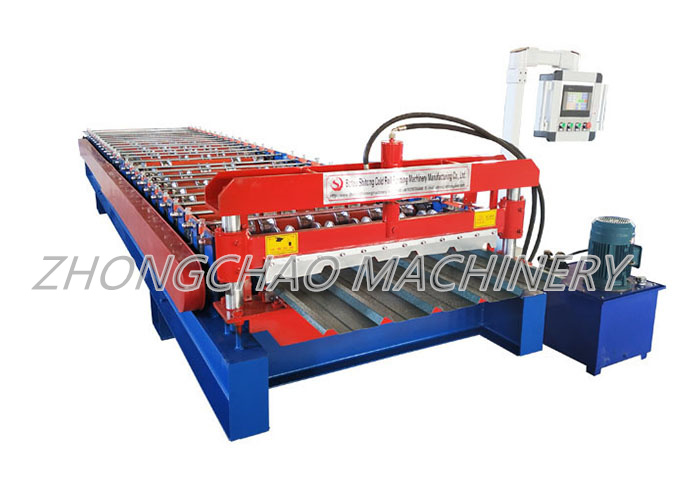

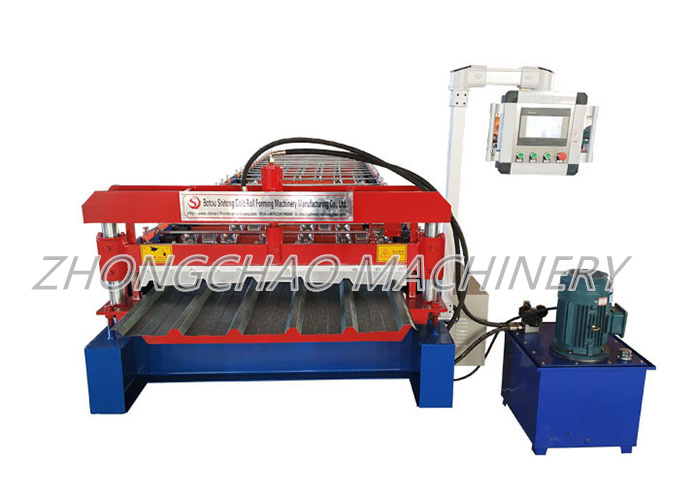

5. Roll forming machine pictures:
---- Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
---- Good service: we provide the technical support for whole life of our machines.
---- Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
---- Easy operation:All machine cotrolling by PLC computer controlling systerm.
2. Automatic Corrugated Iron Steel Roofing Sheet Metal Roll Forming Machines parameters
1.Weight capacity of decoiler
4T
2.Appearance Size(L*W*H)
6500*1500*1500
3.Raw material /feeding sheet material
Colored steel & galvanized steel
4.Roller material
45roof tile roll forming machine high grade steel
5.Shaft material
45roof tile roll forming machine high grade steel
6.Kind of drive
Chain drive
7.Cutting system
Automatic hydyaulic cutting
8.Cutting blade material
Cr 12 high grade steel
9.Frame material
300 H-high grade steel
10.Control system
Totally automatic PLC control system
11.Main power
3kw
12.Roller stations
13 rows
13.Speed of production
8-12m/min
14.Thickness of colored steel
0.2-0.8mm
15.Feeding width
1219mm
16.Effectiv width
914mm
15.Frame material
300 H-steel
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
2. If the buyer needs a technician to visit, we will arrange a technician. But the buyer should bear all costs, including visas, round-trip air tickets, etc.
Tel:+86-15930785588
Whatsapp:+86-15930785588
Fax:+86-15930785588
Email:robin@chinasupercompany.com
Address:West Side Of No. 1 Road, Economic Development Zone, Botou, Hebei, China (Mainland)
Please feel free to give your inquiry in the form below.We will reply you within 24 hours
