Auto Light Steel Keel Roll Forming Machine Roof Truss And Track Channel Forming Machine
1. Auto Light Steel Keel Roll Forming Machine Roof Truss And Track Channel Forming Machine
---- You can produce two different shap design in this one machine.
---- Memorial gate frame provide a suitable roll forming function.
---- Adjustable straighten ensure the final products in stright.
---- Hydraulic cutting system provide a stable cutting.
2. Auto Light Steel Keel Roll Forming Machine Roof Truss And Track Channel Forming Machine parameters
3. roll forming machine company profiles
1. Warranty :One year,and we will provide technical support for whole life of the equipment
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 12months free service
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things
1. How to play order :
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK
2. What should I provide if I want to customized machine?
U need provide profile drawing, material, thickness, voltage and your special requirements.
3. What is the Warranty?
Within 12 mounts, all technicals are ready to serve you at any time.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Do you accpect L/C payment terms?
Yes,we accpect 100% L/C at sight from almost all countries.
6. If need technician to workshop to debug and teach, how to do?
We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
Material
Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet
0.5-1 mm
Efficiency width
25/30mm
Machine details
Roller material
High grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft material
High grade NO. 45 carbon wrought steel
Cutting blade
Cr12 mould steel with quenched treatment
Diameter of shaft
70mm or as your requirement
Main frame
300 H steel
Forming steps
16 stations
Productivity
30-35m/min
Hydraulic station power
5.5 KW
Hydraulic pressure
10-12MPa
Appearance size
7700mm*1500mm*1500mm
Hydraulic oil
40# hydraulic oil
Electric tension
380V 50 Hz 3 Phase or as your requirement
Cut Mode
Hydraulic forming after cutting off
Cutter materia
Cr12 Heat Treatment
Electronic control system
PLC, Touch Screen, Encoding counter
Color
Blue, green or yellow or as your requirement
Rolling material
45# steel,roller surfaces polishing, hard plating
Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Our service
5. FAQ

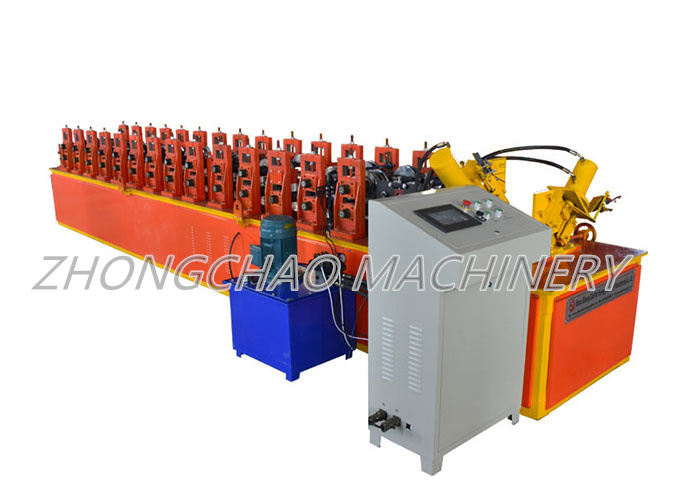

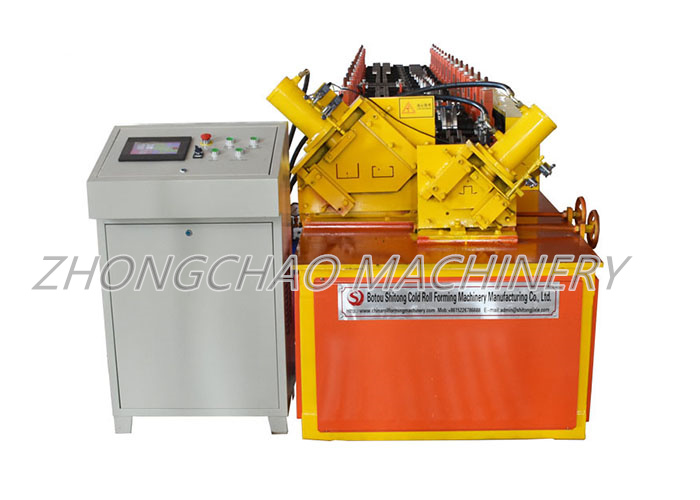

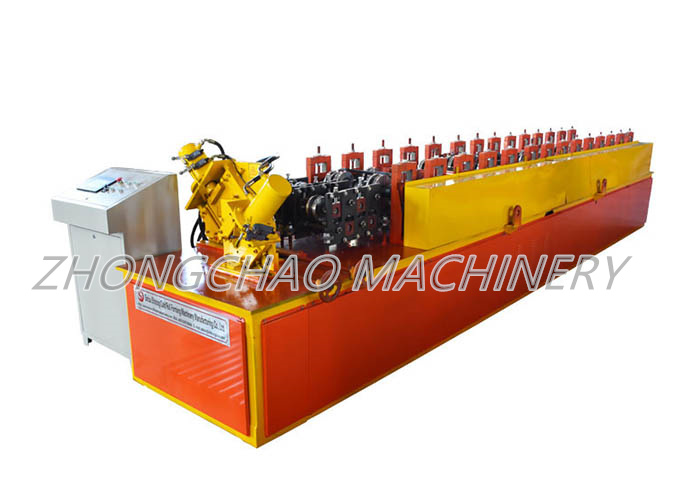

6. Roll forming machine pictures:
Tel:+86-15930785588
Whatsapp:+86-15930785588
Fax:+86-15930785588
Email:robin@chinasupercompany.com
Address:West Side Of No. 1 Road, Economic Development Zone, Botou, Hebei, China (Mainland)
Please feel free to give your inquiry in the form below.We will reply you within 24 hours
